Pneumatic Cylinders & Copper Parts
×

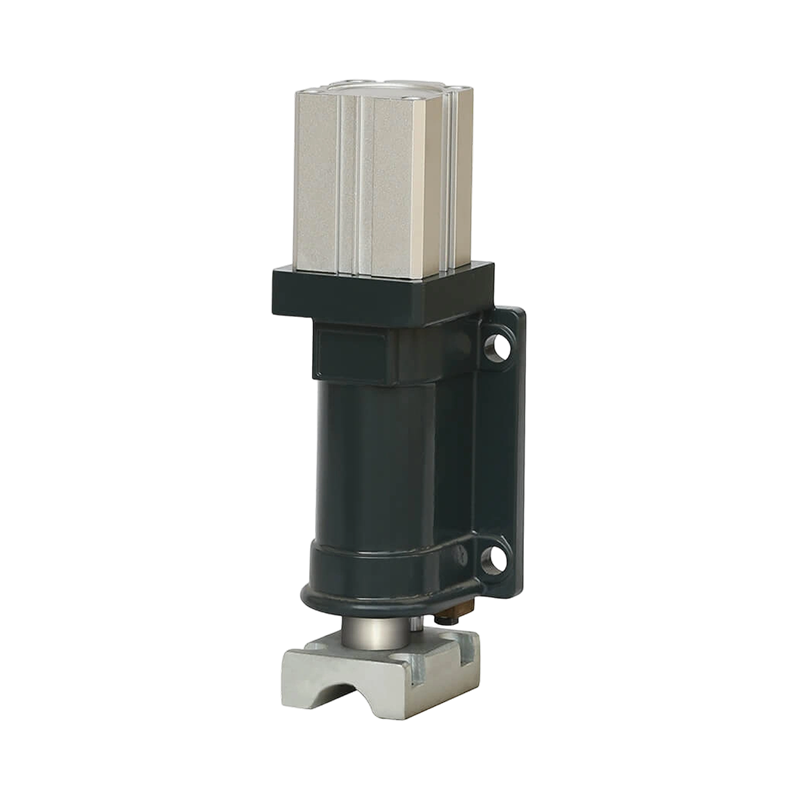

QG50-50 Pneumatic Cylinder
| Model | QG50-50 |
| Cylinder Bore | 50mm |
| Stroke | 50mm |
| Force at 0.5MPa | 1000N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Linear Bearing |
×

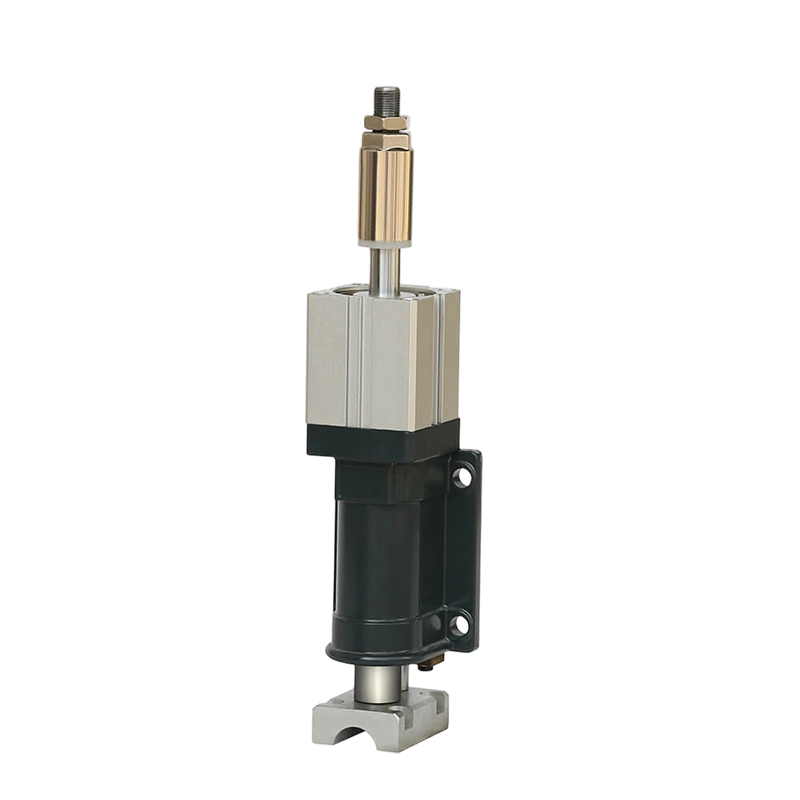

QG50-50D Pneumatic Cylinder
| Model | QG50-50D |
| Cylinder Bore | 50mm |
| Stroke | 50mm, Ejection 0-50mm Adjustable |
| Force at 0.5MPa | 1000N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Linear Bearing |
×

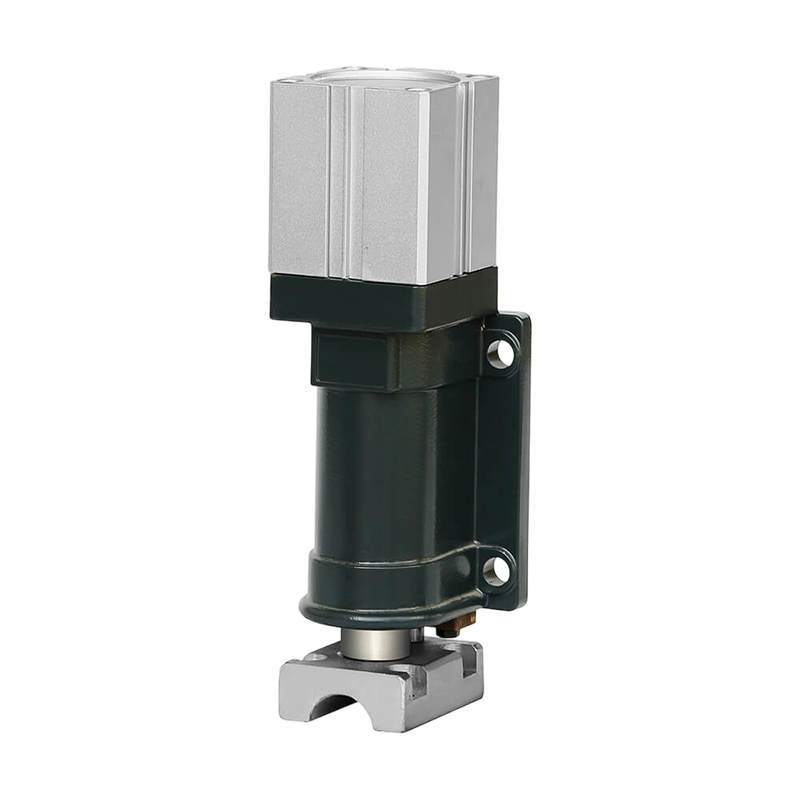

QG63-50 Pneumatic Cylinder
| Model | QG63-50 |
| Cylinder Bore | 63mm |
| Stroke | 50mm |
| Force at 0.5MPa | 1600N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Linear Bearing |
×

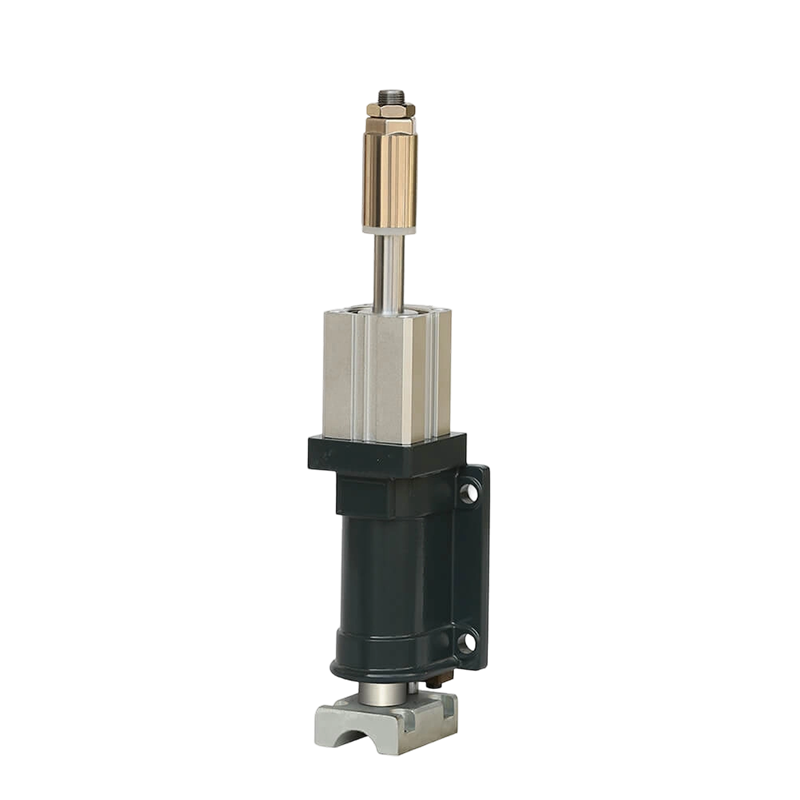

QG63-50D Pneumatic Cylinder
| Model | QG63-50D |
| Cylinder Bore | 63mm |
| Stroke | 50mm, Ejection 0-50mm Adjustable |
| Force at 0.5MPa | 1600N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Linear Bearing |
×

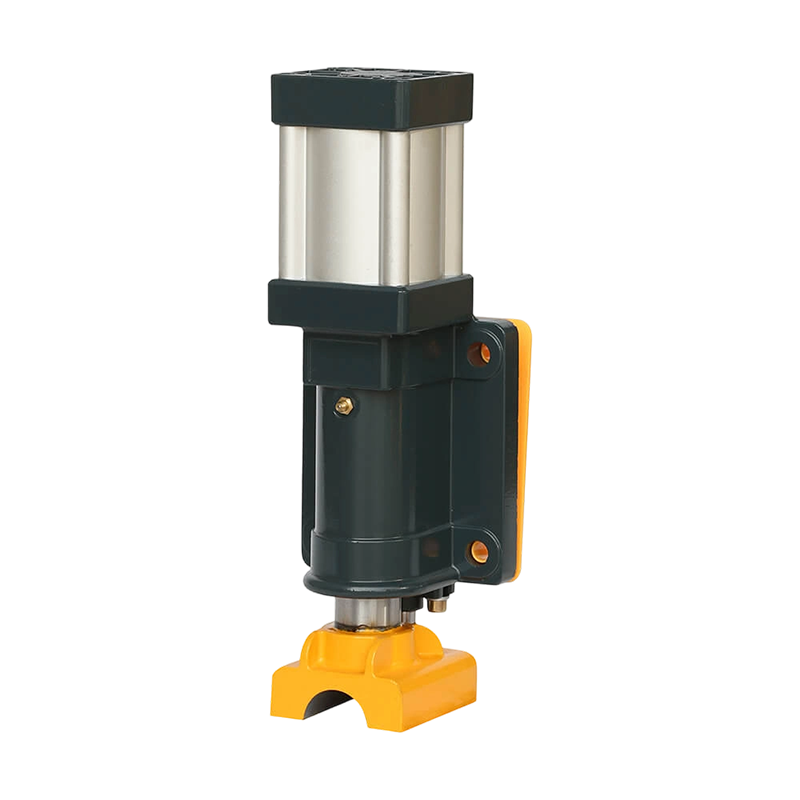

QG80-60 Pneumatic Cylinder
| Model | QG80-60 |
| Cylinder Bore | 80mm |
| Stroke | 60mm |
| Force at 0.5MPa | 2500N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Double Wear-Resistant Copper Bushing |
×

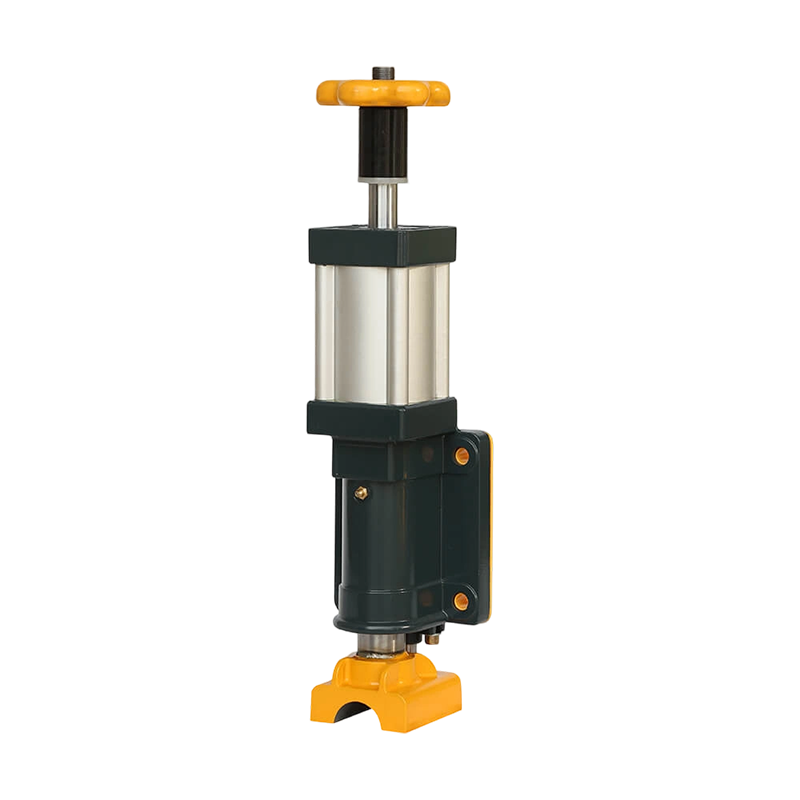

QG80-60H Pneumatic Cylinder
| Model | QG80-60H |
| Cylinder Bore | 50mm |
| Stroke | 60mm, Return Stroke 0-50mm Adjustable |
| Force at 0.5MPa | 2500N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Double Wear-Resistant Copper Bushing |
×

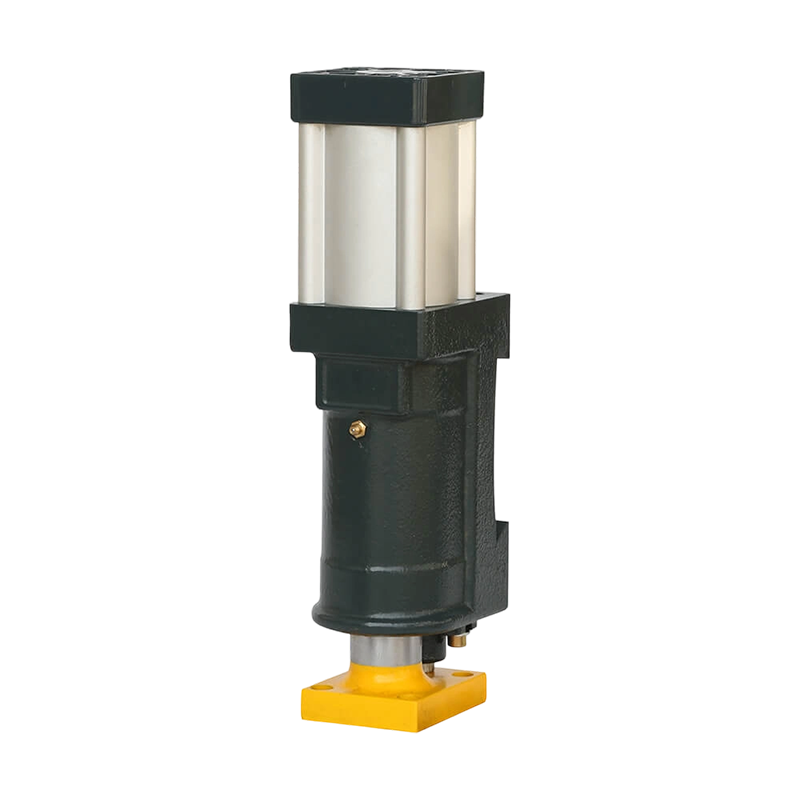

QG80-60Z Pneumatic Cylinder
| Model | QG80-60Z |
| Cylinder Bore | 80mm |
| Stroke | 60mm |
| Force at 0.5MPa | 2500N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Double Wear-Resistant Copper Bushing |
×

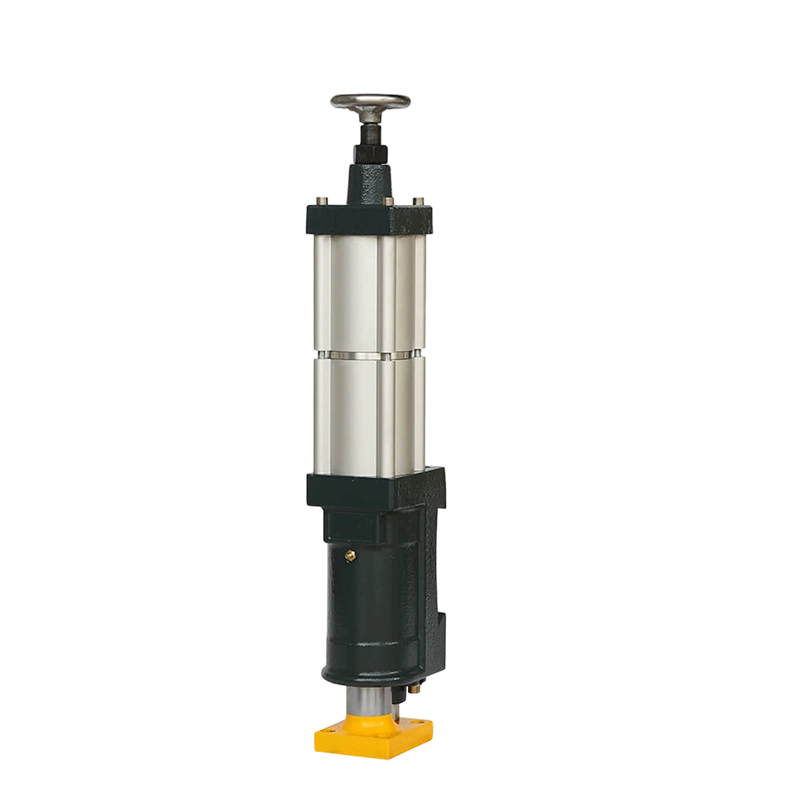

QG80-60ZB2 Pneumatic Cylinder
| Model | QG80-60ZB2 |
| Cylinder Bore | 80mm |
| Stroke | 60mm |
| Force at 0.5MPa | 5000N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Double Wear-Resistant Copper Bushing |
×

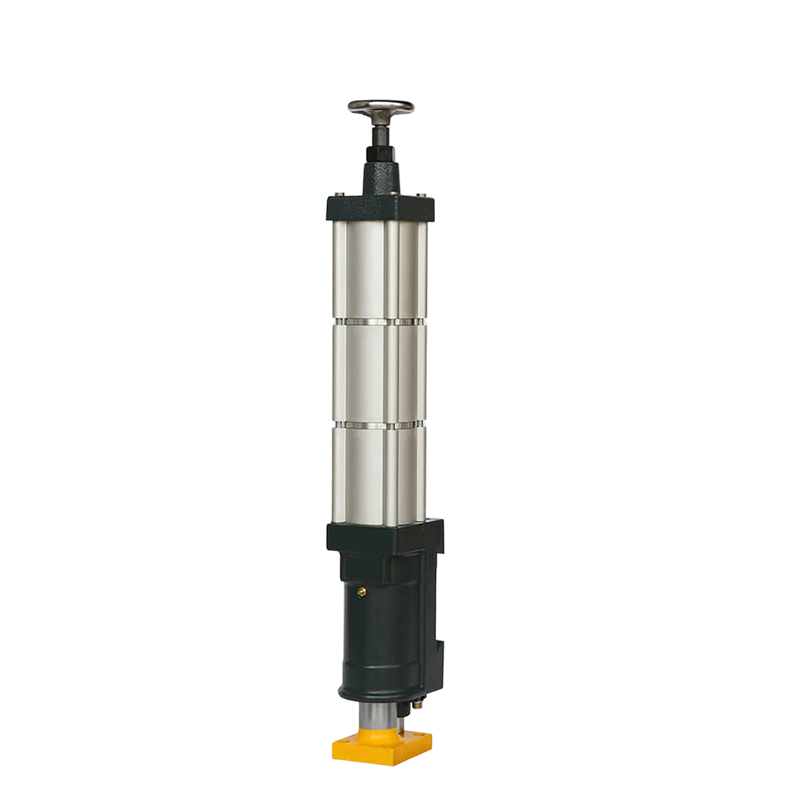

QG80-60ZB3 Pneumatic Cylinder
| Model | QG80-60ZB3 |
| Cylinder Bore | 80mm |
| Stroke | 60mm |
| Force at 0.5MPa | 7500N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Double Wear-Resistant Copper Bushing |
×

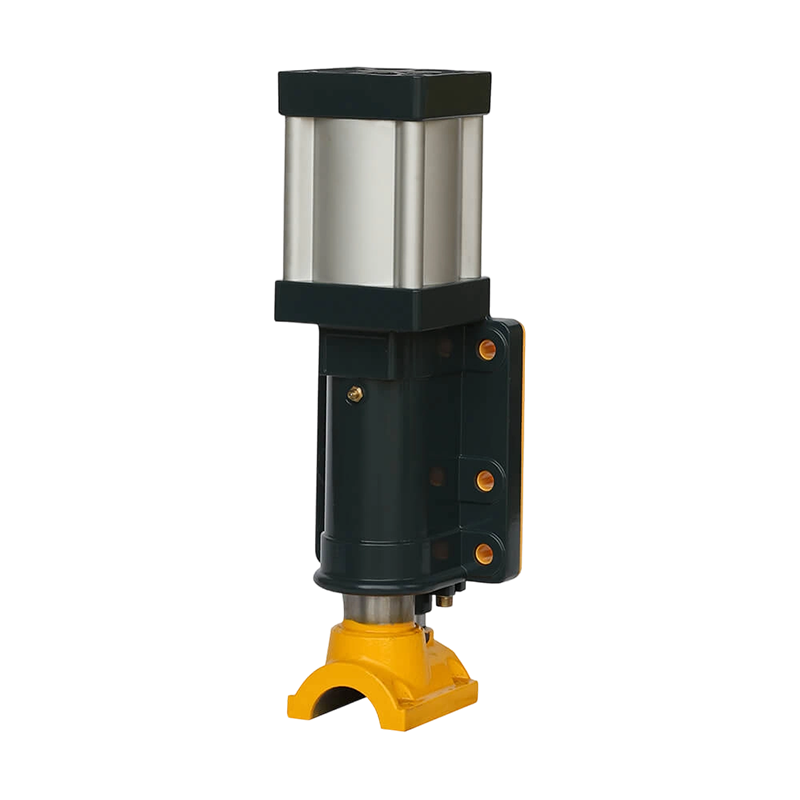

QG100-80 Pneumatic Cylinder
| Model | QG100-80 |
| Cylinder Bore | 100mm |
| Stroke | 80mm |
| Force at 0.5MPa | 3900N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Double Wear-Resistant Copper Bushing |
×

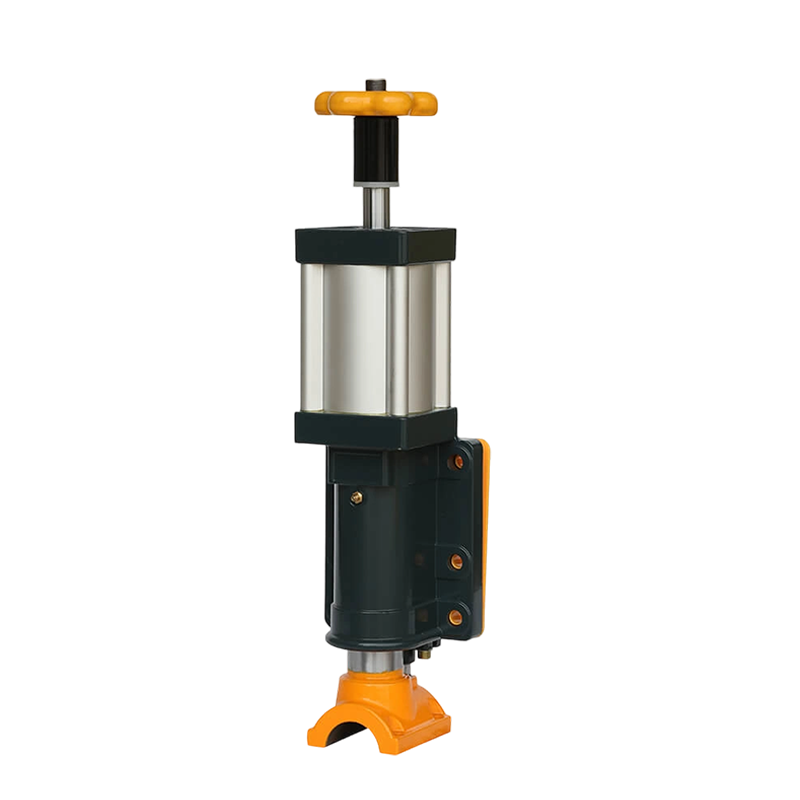

QG100-80H Pneumatic Cylinder
| Model | QG100-80H |
| Cylinder Bore | 100mm |
| Stroke | 80mm, Return Stroke 0-50mm Adjustable |
| Force at 0.5MPa | 3900N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Double Wear-Resistant Copper Bushing |
×

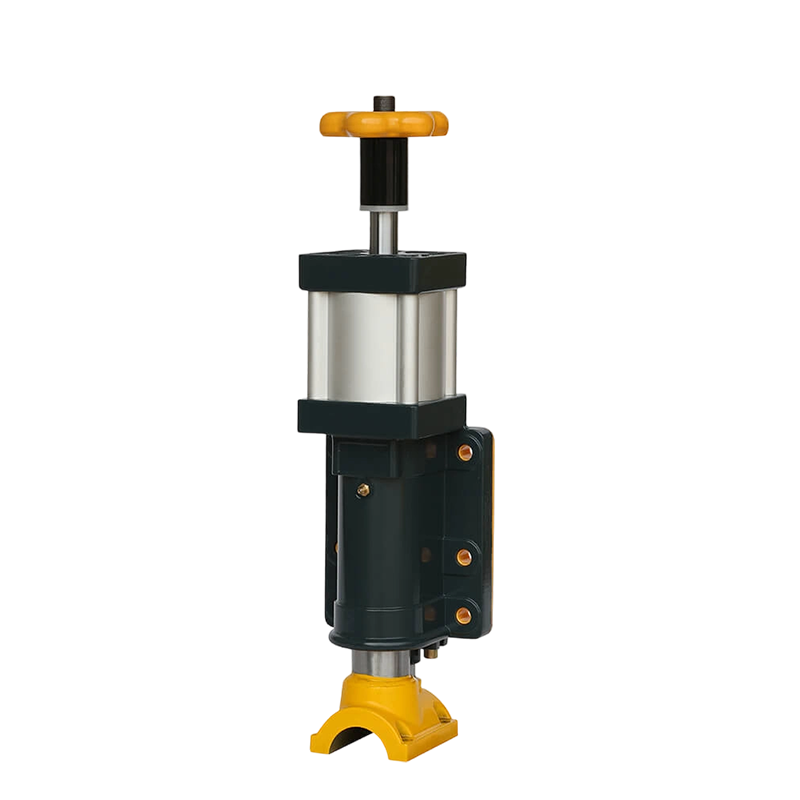

QG100-50D Pneumatic Cylinder
| Model | QG100-50D |
| Cylinder Bore | 100mm |
| Stroke | 50mm, Ejection 0-50mm Adjustable |
| Force at 0.5MPa | 3900N |
| Main Shaft Material | Chromed Hollow Hard Shaft |
| Cylinder Body Material | Aluminum Alloy |
| Motion Friction | Double Wear-Resistant Copper Bushing |
Pneumatic cylinders and copper parts are widely applied in clamping, positioning, pressing, and feeding operations. Pneumatic cylinders provide stable pneumatic motion, enabling precise reciprocating movement and pressure control at welding stations. Copper parts, with excellent electrical and thermal conductivity, are used for welding electrodes, terminals, and conductive blocks to ensure efficient and reliable current transmission. The optimized combination of these components improves welding quality, enhances productivity, and extends equipment service life, making them suitable for spot welding machines, butt welding machines, and seam welding machines.
