MFDC Welding Transformer
×

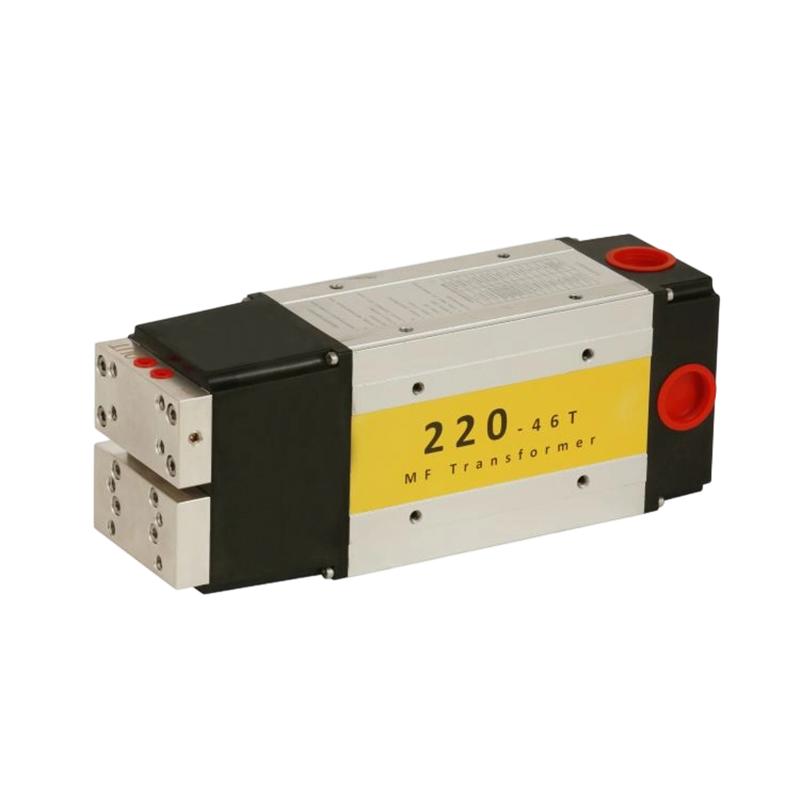

MF220-46T Welding Transformer
| Power source(U1N) | 1000HZ/500V |
| Secondary unload voltage(U20) | 10.9V |
| Power/current at 10% duty cycle(ON 200ms and OFF 1800ms) | 320KVA/30KA |
| Power/current at 20% duty cycle(ON 400ms and OFF 1600ms) | 220KVA/20KA |
| Power/current at 50% duty cycle(ON 1000ms and OFF 1000ms) | 160KVA/14.7KA |
| Power/current at 100% duty cycle | 87KVA/8KA |
| Maximum short-circuit current | 50KA |
| Flow of cooling water Q | ≥2×8L/min |
| Pressure difference of cooling water△P | ≥0.15Mpa |
| Insulation class | H |
| Protective grade | IP30 |
| Weight | 29KG |
| Executive Standard | GB/T25301-2021/ISO5826:2014 |
×

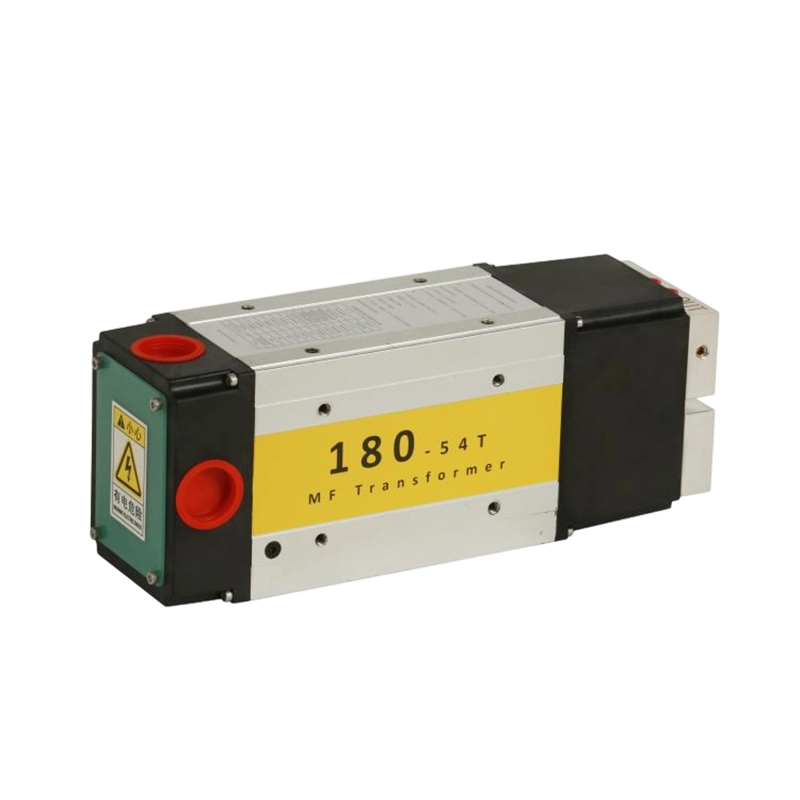

MF180-54T Welding Transformer
| Power source(U1N) | 1000HZ/500V |
| Secondary unload voltage(U20) | 9.3V |
| Power/current at 10% duty cycle(ON 200ms and OFF 1800ms) | 280KVA/30KA |
| Power/current at 20% duty cycle(ON 400ms and OFF 1600ms) | 180KVA/20KA |
| Power/current at 50% duty cycle(ON 1000ms and OFF 1000ms) | 125KVA/13.5KA |
| Power/current at 100% duty cycle | 75KVA/8KA |
| Maximum short-circuit current | 45KA |
| Flow of cooling water Q | ≥2×8L/min |
| Pressure difference of cooling water△P | ≥0.15Mpa |
| Insulation class | H |
| Protective grade | IP30 |
| Weight | 28KG |
| Executive Standard | GB/T25301-2021ISO5826:2014 |
×

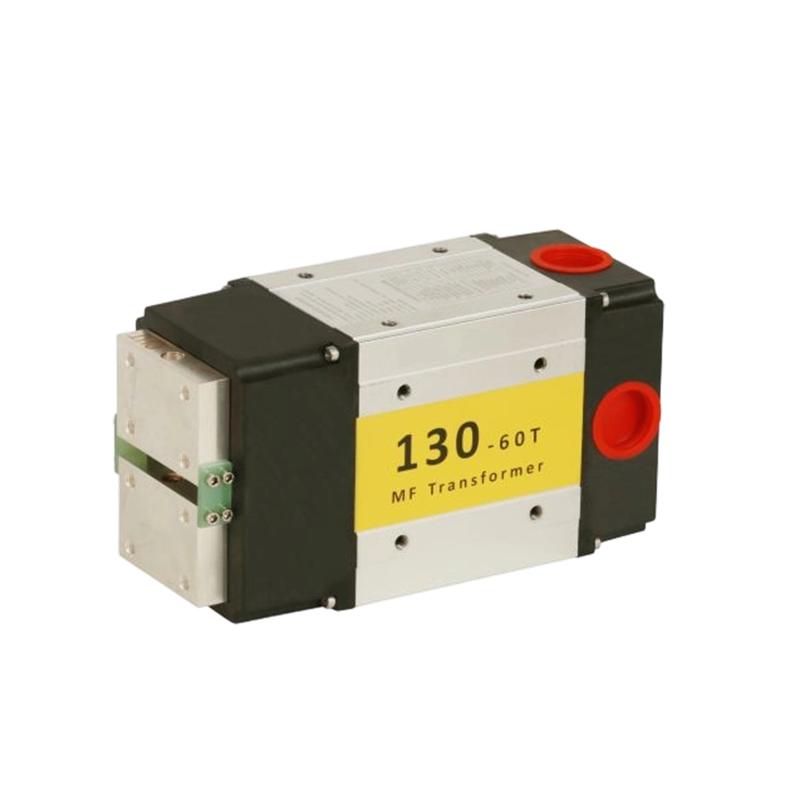

MF130-60T Welding Transformer
| Power source(U1N) | 1000HZ/500V |
| Secondary unload voltage(U20) | 8.3V |
| Power/current at 10% duty cycle(ON 200ms and OFF 1800ms) | 200KVA/24KA |
| Power/current at 20% duty cycle(ON 400ms and OFF 1600ms) | 130KVA/15.6KA |
| Power/current at 50% duty cycle(ON 1000ms and OFF 1000ms) | 80KVA/9.6KA |
| Power/current at 100% duty cycle | 50KVA/6KA |
| Maximum short-circuit current | 38KA |
| Flow of cooling water Q | ≥8L/min |
| Pressure difference of cooling water△P | ≥0.15Mpa |
| Insulation class | H |
| Protective grade | IP30 |
| Weight | 18KG |
| Executive Standard | GB/T25301-2021ISO5826:2014 |
×

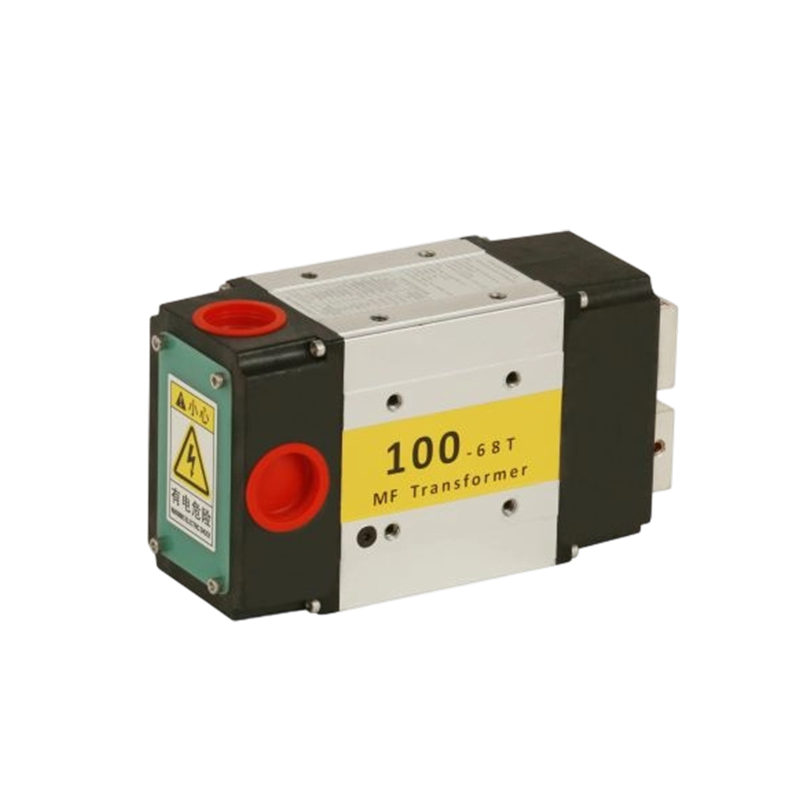

MF100-68T Welding Transformer
| Power source(U1N) | 1000HZ/500V |
| Secondary unload voltage(U20) | 7.2V |
| Power/current at 10% duty cycle(ON 200ms and OFF 1800ms) | 160KVA/22KA |
| Power/current at 20% duty cycle(ON 400ms and OFF 1600ms) | 100KVA/13.6KA |
| Power/current at 50% duty cycle(ON 1000ms and OFF 1000ms) | 63KVA/8.6KA |
| Power/current at 100% duty cycle | 40KVA/5.4KA |
| Maximum short-circuit current | 30KA |
| Flow of cooling water Q | ≥8L/min |
| Pressure difference of cooling water△P | ≥0.15Mpa |
| Insulation class | H |
| Protective grade | IP30 |
| Weight | 12KG |
| Executive Standard | GB/T25301-2021ISO5826:2014 |
×

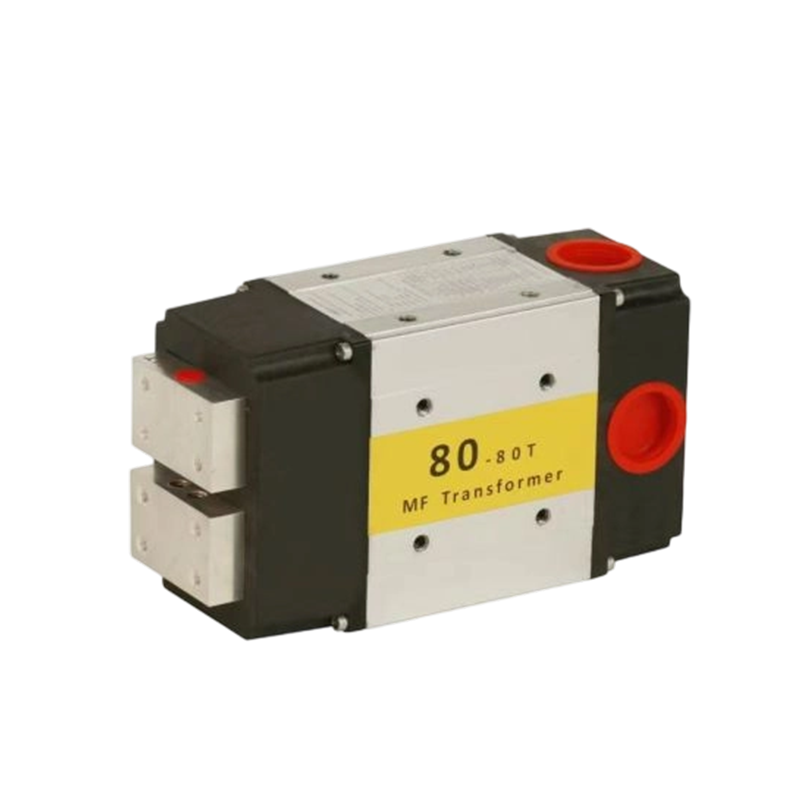

MF80-80T Welding Transformer
| Power source(U1N) | 1000HZ/500V |
| Secondary unload voltage(U20) | 6.3V |
| Power/current at 10% duty cycle(ON 200ms and OFF 1800ms) | 130KVA/20.5KA |
| Power/current at 20% duty cycle(ON 400ms and OFF 1600ms) | 80KVA/12.8KA |
| Power/current at 50% duty cycle(ON 1000ms and OFF 1000ms) | 50KVA/8KA |
| Power/current at 100% duty cycle | 32KVA/5KA |
| Maximum short-circuit current | 28KA |
| Flow of cooling water Q | ≥8L/min |
| Pressure difference of cooling water△P | ≥0.15Mpa |
| Insulation class | H |
| Protective grade | IP30 |
| Weight | 12KG |
| Executive Standard | GB/T25301-2021ISO5826:2014 |
×

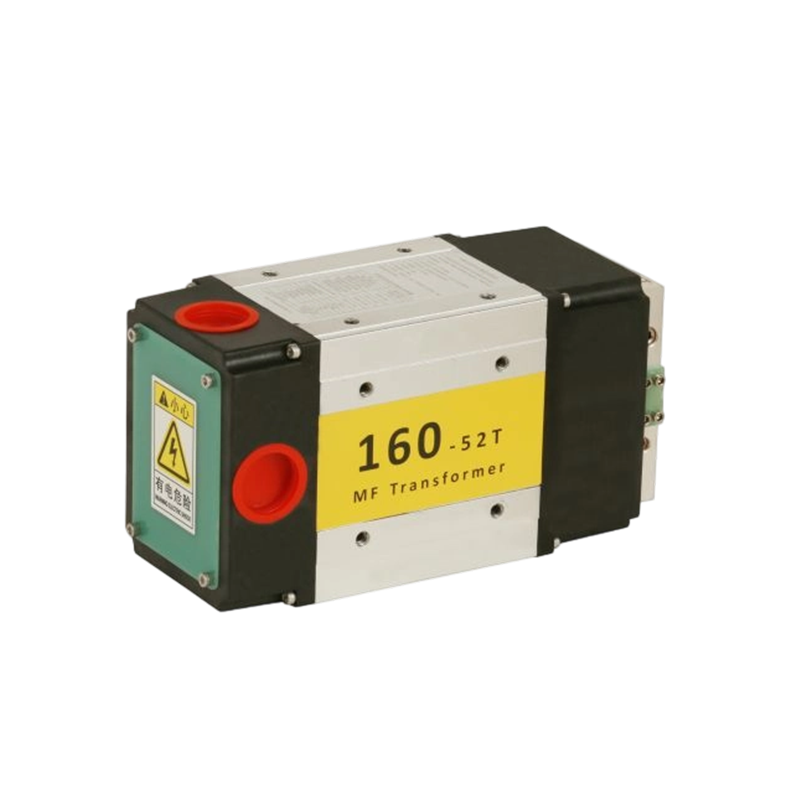

MF160-52T Welding Transformer
| Power source(U1N) | 1000HZ/500V |
| Secondary unload voltage(U20) | 9.6V |
| Power/current at 10% duty cycle(ON 200ms and OFF 1800ms) | 250KVA/26KA |
| Power/current at 20% duty cycle(ON 400ms and OFF 1600ms) | 160KVA/16.6KA |
| Power/current at 50% duty cycle(ON 1000ms and OFF 1000ms) | 100KVA/10.4KA |
| Power/current at 100% duty cycle | 63KVA/6.5KA |
| Maximum short-circuit current | 40KA |
| Flow of cooling water Q | ≥8L/min |
| Pressure difference of cooling water△P | ≥0.15Mpa |
| Insulation class | H |
| Protective grade | IP30 |
| Weight | 18.5KG |
| Executive Standard | GB/T25301-2021ISO5826:2014 |
×

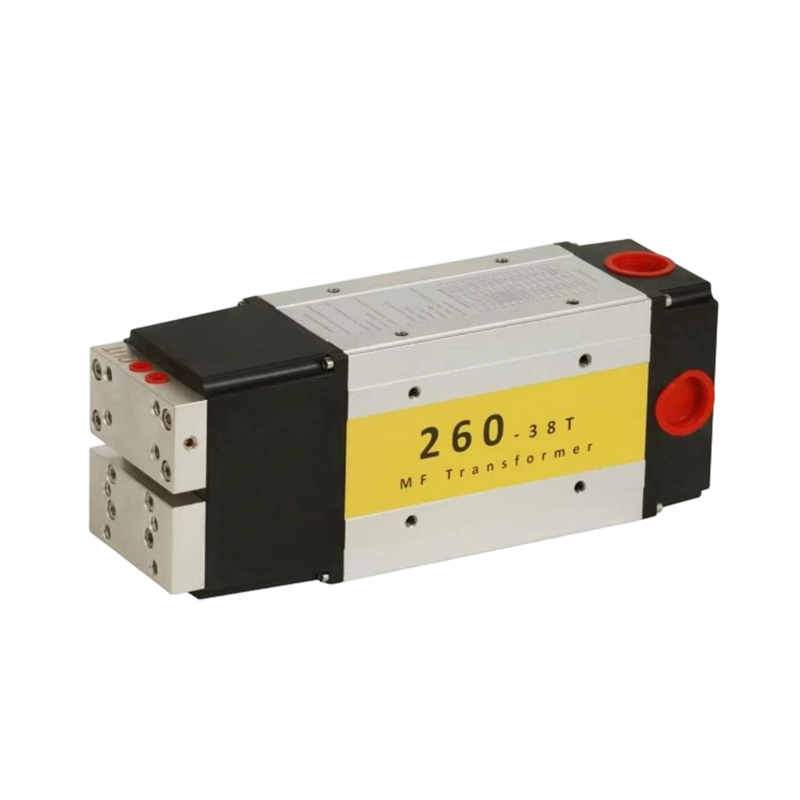

MF260-38T Welding Transformer
| Power source(U1N) | 1000HZ/500V |
| Secondary unload voltage(U20) | 13.2V |
| Power/current at 10% duty cycle(ON 200ms and OFF 1800ms) | 400KVA/30KA |
| Power/current at 20% duty cycle(ON 400ms and OFF 1600ms) | 260KVA/20KA |
| Power/current at 50% duty cycle(ON 1000ms and OFF 1000ms) | 180KVA/13.7KA |
| Power/current at 100% duty cycle | 106KVA/8KA |
| Maximum short-circuit current | 55KA |
| Flow of cooling water Q | ≥2×8L/min |
| Pressure difference of cooling water△P | ≥0.15Mpa |
| Insulation class | H |
| Protective grade | IP30 |
| Weight | 30KG |
| Executive Standard | GB/T25301-2021ISO5826:2014 |
Medium frequency direct current (MFDC) welding transformers precisely control welding current via a medium-frequency power source, offering minimal spatter, stable arcs, and controllable heat input. They are widely applied in automotive manufacturing, precision electronics, battery welding, and thin-sheet metal welding. MFDC transformers improve welding efficiency and product consistency, meeting modern industry demands for high-precision, high-reliability welding.
