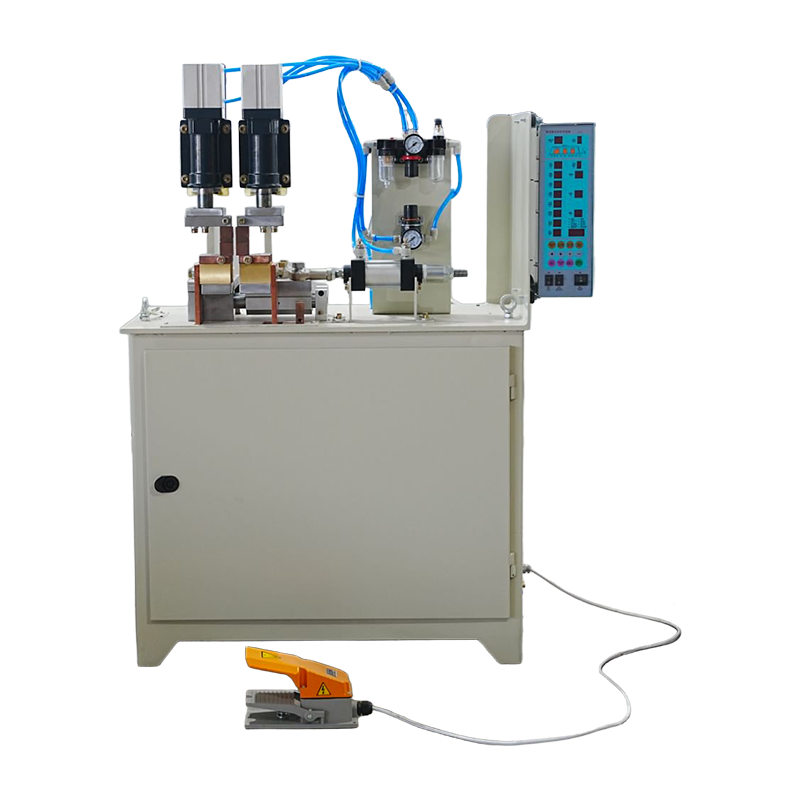

pneumatic butt welding machine with precise pressure system for rod pipe and profile welding

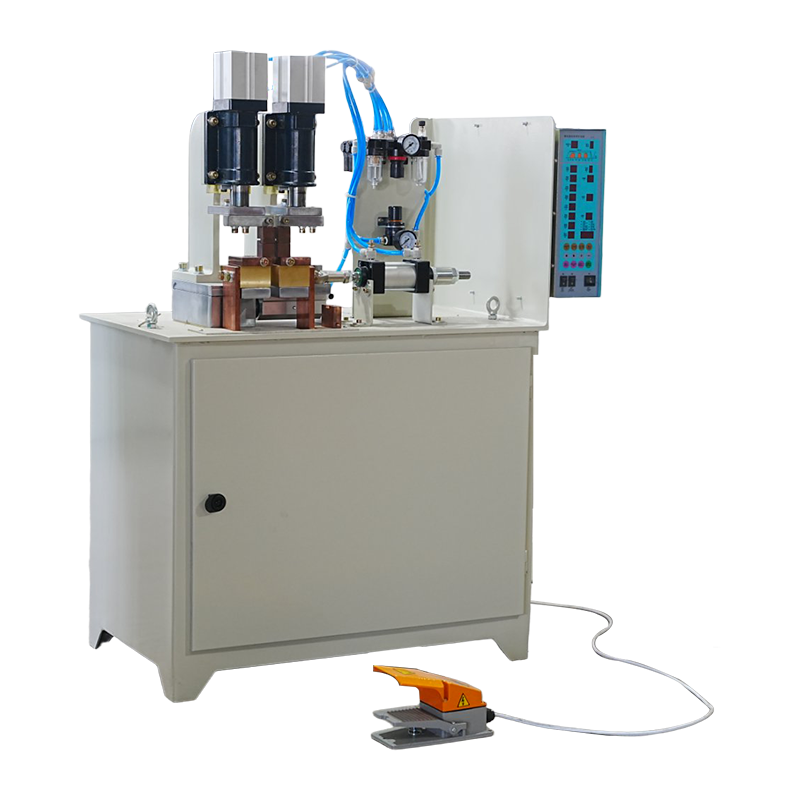

compact pneumatic resistance butt welder with programmable controls for high volume production
pneumatic butt welding equipment for carbon steel stainless steel copper and aluminum alloy components

Pneumatic Spot Metal Mesh Row Welding Welding Machine

Product Details:
Product Details:

Pneumatic Butt Welding Machine

The Pneumatic Butt Welding Machine utilizes a precise pneumatic pressure system to apply consistent vertical force on the workpieces, bringing their ends into intimate contact and using resistance-generated heat to achieve a solid weld. This process eliminates the need for filler metals or shielding gases and features simple operation, rapid welding cycles, and low power consumption. Many models include programmable controls to store and repeat welding parameters, enhancing consistency in high-volume production. The resulting welds are dense and strong, suitable for joining carbon steel, stainless steel, copper, aluminum alloys, and other metals in rod, pip,e and profile forms. With its compact design, ease of maintenance, and high reliability, it is ideal for hardware manufacturing, industrial fabrication, and automated assembly lines requiring efficient production solutions.

Key Features

Pneumatic Pressure System Provides stable vertical force and consistent workpiece contact during the butt welding process.
Resistance Butt Welding Process Uses electrical resistance heat to join metal ends without filler material or shielding gas.
Strong and Dense Weld Joints Properly controlled pressure and current help produce firm welds with reliable joint strength.
Dual Clamping Structure Helps hold both workpiece ends securely and maintain alignment during welding.
Programmable Control Option Welding time, current, pressure sequence, and process parameters can be set for repeatable production.
Foot Pedal Operation Convenient pedal control supports efficient operation and leaves the operator’s hands free for workpiece positioning.
Compact Cabinet Design Integrated structure saves floor space and is suitable for workshops, production cells, and assembly stations.
Low Consumable Requirement The welding process does not require filler metals, welding wire, or shielding gas, reducing auxiliary material use.
Fast Welding Cycle Suitable for repeated joining tasks where stable quality and production efficiency are required.
Easy Maintenance Access Pneumatic components, control elements, and welding fixtures are arranged for practical inspection and maintenance.
Flexible Fixture Configuration Clamping fixtures and electrode structures can be adapted for rods, pipes, profiles, wires, strips, and custom parts.
Factory Technical Support Welding settings and machine configuration can be recommended according to material type, cross-section size, welding strength, and production rhythm.

Application Areas

This pneumatic resistance butt welding machine is suitable for many metal joining applications, including:

  • Metal rod welding
  • Wire product welding
  • Pipe and tube end joining
  • Profile material welding
  • Hardware component production
  • Frame and support structure fabrication
  • Stainless steel product manufacturing
  • Copper and aluminum part joining
  • Appliance component processing
  • Metal strip and flat bar welding
  • Industrial assembly line welding
  • Custom metal component fabrication
It is especially suitable for applications requiring stable end-to-end welding, strong joint strength, fast welding cycles, repeatable welding quality, and efficient workshop operation.

Working Principle

Workpieces get locked into the left and right clamping fixtures, ends lined up precisely at the welding position. Once operation begins, the pneumatic system pushes those ends into firm contact under pressure. Welding current then runs through the joint area, generating resistance heat right where it's needed. Between the controlled pressure and heat, the metal ends fuse into a solid welded joint.

What makes this welding method efficient is that no filler material gets added into the mix. It also fits naturally into automated or semi-automated production layouts where the same type of workpiece needs welding again and again.

The Pneumatic Butt Welding Machine offers a dependable resistance welding solution for end-to-end joining of metal rods, pipes, wires, profiles, strips, and formed components. Pneumatic pressure control, a dual clamping structure, adjustable welding parameters, a fast welding cycle, a compact cabinet design, and flexible tooling options all work together to push welding consistency and production efficiency higher across metal fabrication and industrial assembly applications.
Landing on the right welding configuration starts with the details — workpiece material, cross-section size, shape, welding length, joint strength requirement, and production rhythm. Once the technical team has those, they can recommend the proper clamping fixture, electrode structure, welding parameters, and machine setup for your application.
