100KVA to 320KVA MFDC Spot Welding Machine-Yongkang Jiaxiao Welding Automation Equipment Co., Ltd.

	TBZ-320

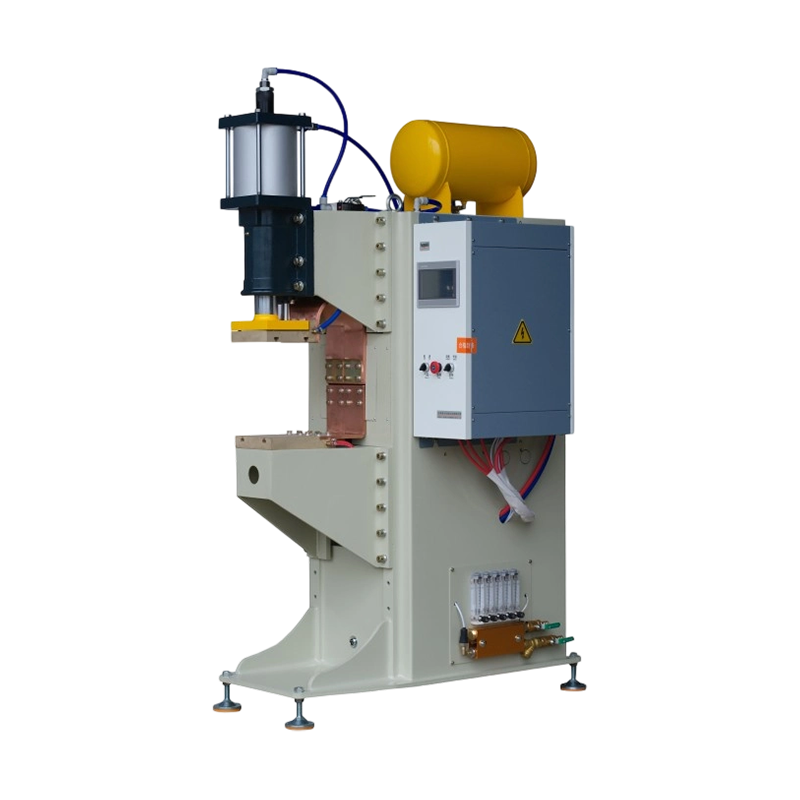

	TBZ-260

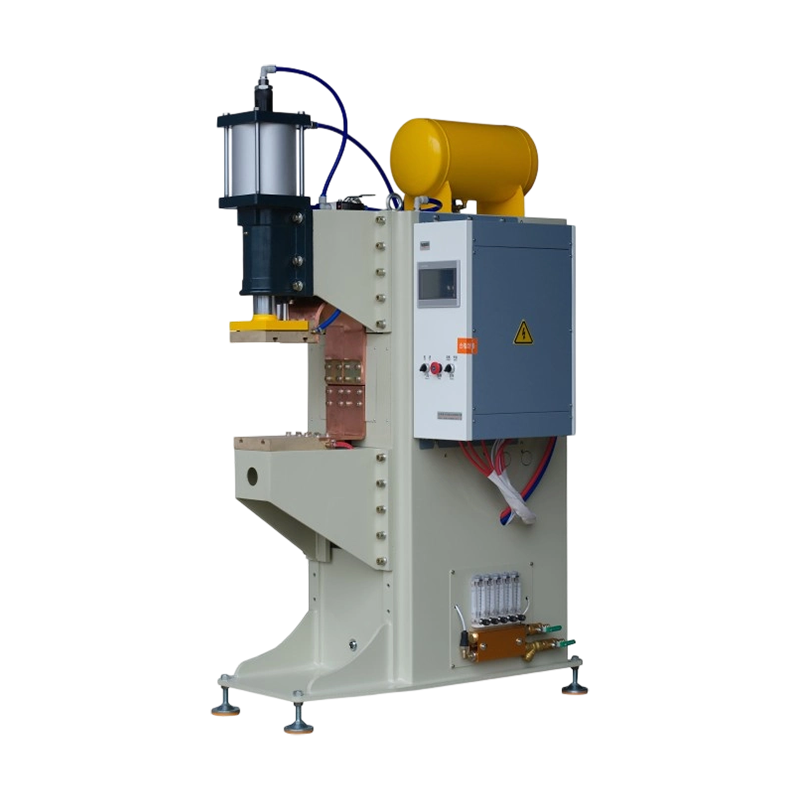

	DTBZ-260D
	DTBZ-180D
	DTBZ-130D

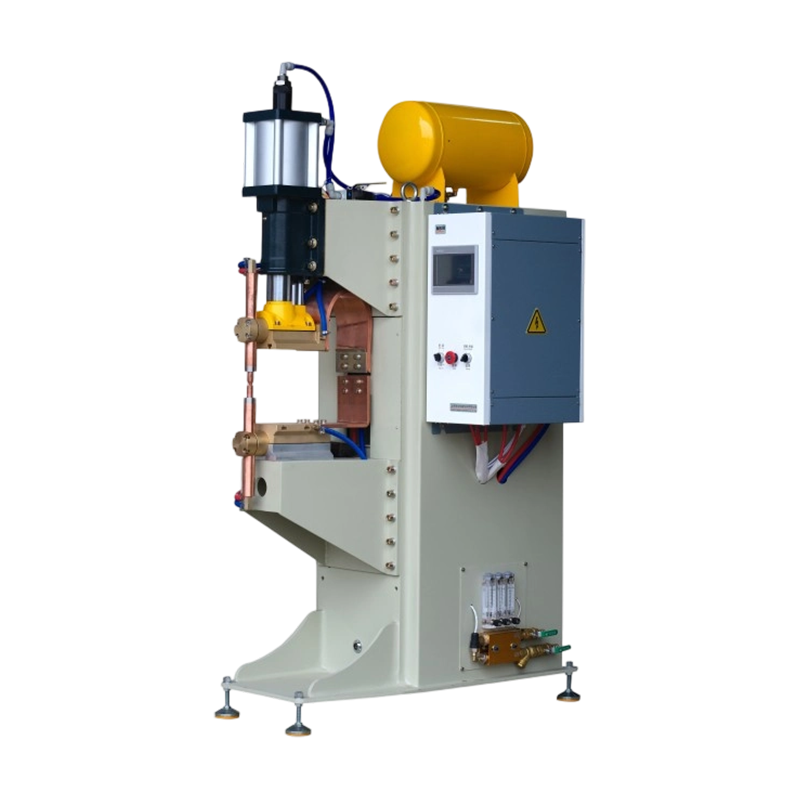

	DTBZ-180D

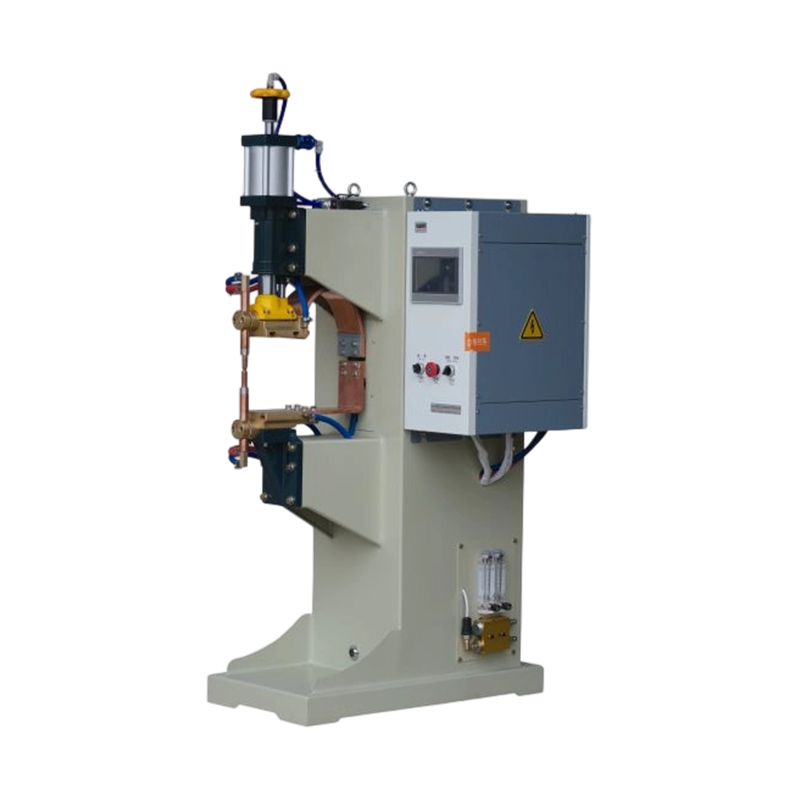

	DTBZ-100

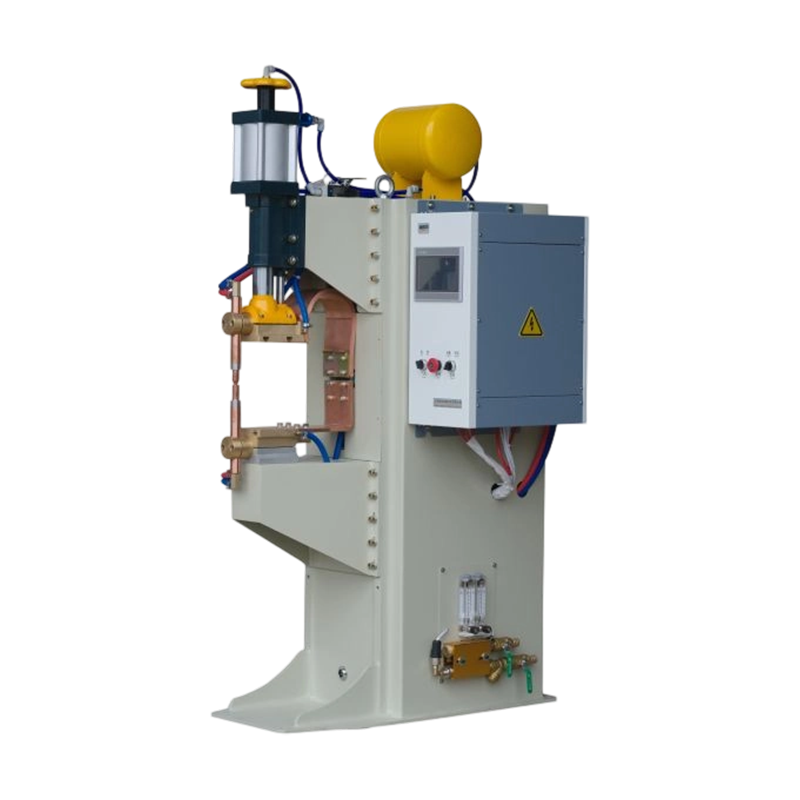

	DTBZ-130D

Pneumatic Spot Metal Mesh Row Welding Welding Machine

Product Details:

Parameters	TBZ-320	TBZ-260	DTBZ-260D	DTBZ-180D	DTBZ-130D	DTBZ-180	DTBZ-100	DTBZ-130
Rated capacity	320KVA	260KVA	260KVA	180KVA	130KVA	180KVA	100KVA	130KVA
Voltage input	380V/50Hz three phase	380V/50Hz three phase	380V/50Hz three phase	380V/50Hz three phase	380V/50Hz three phase	380V/50Hz three phase	380V/50Hz three phase	380V/50Hz three phase
Duty cycle	20%	20%	20%	20%	20%	20%	20%	20%
Max short-circuit current	75KA	60KA	60KA	45KA	38KA	45KA	28KA	38KA
Wire inlet	35mm²	35mm²	35mm²	25mm²	16mm²	25mm²	10mm²	16mm²
Secondary voltage	9.26V	9.62V	9.62V	9.26V	8.33V	9.26V	7.35V	8.33V
Welding ability	8mm+8mm	6mm+6mm	6mm+6mm	4mm+4mm	3mm+3mm	4mm+4mm	2mm+2mm	3mm+3mm
Water cooling flow	40L/min	30L/min	30L/min	25L/min	20L/min	25L/min	15L/min	20L/min
Cylinder size	φ200	φ200	φ200	φ160	φ125	φ160	φ100	φ125
Cylinder stroke	stroke 150mm, 50mm adjustable	stroke 150mm, 50mm adjustable	stroke 150mm, 50mm adjustable	stroke 120mm, 50mm adjustable	stroke 100mm, 50mm adjustable	stroke 120mm, 50mm adjustable	stroke 80mm, 50mm adjustable	stroke 100mm, 50mm adjustable
Cylinder pressure	16000N	16000N	16000N	10000N	6100N	10000N	3900N	6100N
Projection platform size	200x200mm,240x240mm choosable	200x200mm,240x240mm choosable	150×170mm	150×170mm	120×130mm	150×170mm	110×130mm	120×130mm
Copper bar diameter	NO	NO	φ79mm	φ79mm	φ64mm	φ79mm	φ54mm	φ64mm
Holder diameter	NO	NO	φ38mm	φ38mm	φ30mm	φ38mm	φ25mm	φ30mm
Tip diameter	NO	NO	φ20mm	φ20mm	φ20mm	φ20mm	φ16mm	φ20mm
Projection platform inner space	300/385/470mm choosable	300/385/470mm choosable	215/300/385mm choosable	225/300/375mm choosable	235/300/365mm choosable	280mm		250mm
Arm length	380/600mm choosable	380/600mm choosable	420/650mm choosable	420/650mm choosable	380/580mm choosable	420/650mm choosable	380/580/780mm choosable	380/580/780mm choosable
Air source	0.5-0.8Mpa dry compressed air	0.5-0.8Mpa dry compressed air	0.5-0.8Mpa dry compressed air	0.5-0.8Mpa dry compressed air	0.5-0.8Mpa dry compressed air	0.5-0.8Mpa dry compressed air	0.5-0.8Mpa dry compressed air	0.5-0.8Mpa dry compressed air
Water pressure projection	YES	YES	YES	YES	YES	YES	YES	YES
Water flow projection	YES	YES	YES	YES	YES	NO	NO	YES
Air switch	YES	YES	YES	YES	YES	NO	NO	NO
Weight	750kg	700kg	700kg	580kg	370kg	460kg	200kg	370kg
Outline size	1300mmx850mmx2200mm	1300mmx850mmx2200mm	1300mm×850mm×2200mm	1280mm×820mm×2080mm	1080mm×750mm×1950mm	1150mm×800mm×2000mm	950mm×680mm×1750mm	1080mm×750mm×1950mm

Product Details:

The mid-frequency inverter spot and projection welding machine is a high-efficiency DC resistance welding equipment based on mid-frequency (typically around 1000 Hz) inverter technology. It converts AC power into high-frequency DC output, achieving smooth current flow, precise control, and high welding efficiency. Compared to traditional AC welders, mid-frequency welders offer higher thermal efficiency, more stable weld quality, and lower energy consumption, making them the mainstream equipment for modern metal welding production.

These models cover a wide range of power requirements, from medium to low power to large power, catering to various welding scenarios.
They are suitable for spot and projection welding of various metal materials such as steel, galvanized steel, stainless steel, aluminum, and copper. Common applications include automobile manufacturing, hardware components, new energy equipment, electrical hardware, metal enclosures, and more.
