Power Frequency Spot Welding Machine

Home / Products / Spot Welding Machines / Power Frequency Spot Welding Machine / Wire Mesh Spot Welding Machine

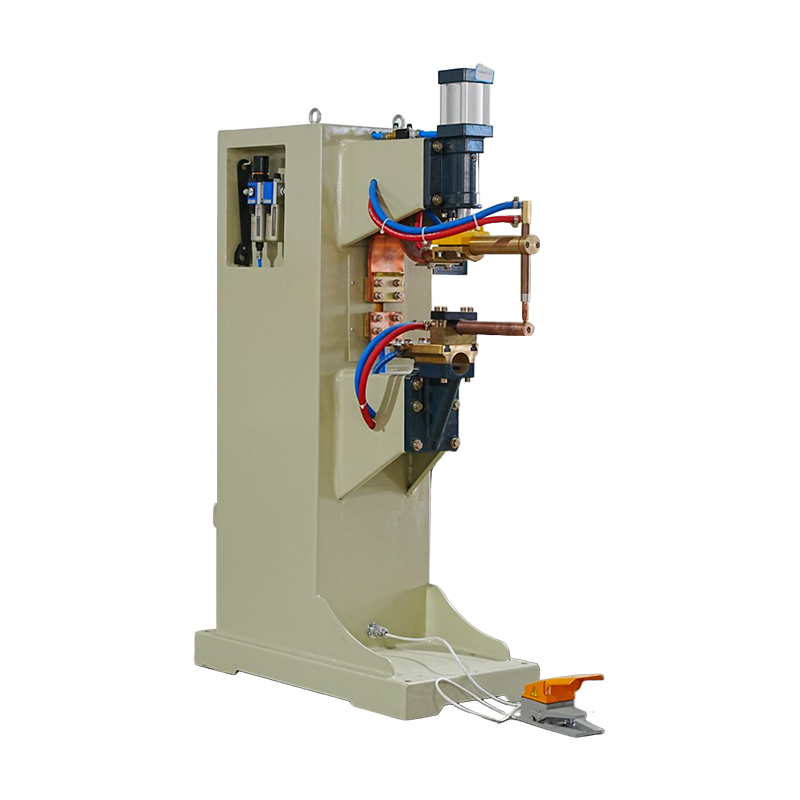

wire mesh spot welding machine with pneumatic welding head and precise current control for mesh fabrication
industrial wire mesh welding machine for steel mesh stainless steel mesh and copper mesh spot welding
wire mesh resistance spot welder with positioning system for EMI shielding and metal filter mesh production

Pneumatic Spot Metal Mesh Row Welding Welding Machine

Product Details:
Product Details:

Wire Mesh Spot Welding Machine

The wire mesh spot welding machine is dedicated to welding mesh materials such as copper, steel, and stainless-steel mesh. With precise current control and a positioning system, it minimizes mesh distortion, burn-through, and weld defects.

Adjustable welding current and electrode force accommodate various mesh sizes and material thicknesses, ensuring beautiful, strong welds. Widely used in communication shielding, EMI/RFI protection, electronic components, and metal filter mesh production, this machine delivers high-speed welding and excellent repeatability, significantly improving production line efficiency and quality for mesh fabrication applications.

Why Mesh Welding Requires Special Process Control

Wire mesh materials don't forgive excessive heat and pressure easily. Push the current too high and the wire can burn through or flatten out. Let pressure run unstable and the welding point may shift or come out weak. Get positioning wrong and the mesh structure risks deforming or losing dimensional consistency altogether.

This machine tackles those common issues through:

Controlled welding current
Stable pneumatic electrode force
Accurate mesh positioning
Efficient copper electrode current transfer
Reduced burn-through risk
Lower mesh distortion
Cleaner weld appearance
Improved repeatability for fine wire mesh
Flexible parameter adjustment across different mesh sizes
For shielding mesh, filter mesh, electronic mesh parts, and precision wire mesh components, process stability isn't just a technical detail — it shows up directly in product quality and appearance.

Custom Mesh Welding Support

Jiaxiao configures the machine around the actual mesh material, wire diameter, mesh opening size, welding point layout, product shape, and how fast the production line needs to run.

Support available includes:

  • Custom copper electrodes
  • Fine wire mesh electrode design
  • Mesh positioning fixtures
  • Adjustable worktables
  • Pneumatic clamping support
  • Multi-point welding tooling
  • Semi-automatic feeding structure
  • PLC control integration
  • Foot pedal or button operation modes
  • Welding parameter guidance
  • Sample welding process testing
  • Non-standard mesh welding equipment development
With this engineering support behind it, the welding process ends up matching the actual mesh product much more closely, and consistency holds up better over long production runs.
The Wire Mesh Spot Welding Machine is a specialized resistance welding system built for copper mesh, steel mesh, stainless steel mesh, galvanized mesh, EMI shielding mesh, RFI protection mesh, metal filter mesh, electronic mesh components, and fine wire mesh products. Adjustable welding current, pneumatic electrode pressure, copper electrode tooling, mesh positioning support, a reinforced frame, and foot pedal operation come together to deliver stable weld strength, less burn-through, reduced mesh distortion, a cleaner weld appearance, and repeatable quality across precision mesh fabrication work.
