China 35KVA AC Spot Welding Machine Manufacturer & Supplier

Pneumatic Spot Metal Mesh Row Welding Welding Machine

Product Details:

Product parameters(DN-35KVA)
Rated capacity	35KVA
Voltage input	380V/50HZ single phase
Inlet wire	16mm²
Secondary voltage	5.2V
Max short-circuit current	16KA
Duty cycle	20%
Cylinder	φ80
Cylinder stroke	60mm
Max pressure	2500N
Projection platform inner space	220mm
Copper bar diameter	φ44mm
Holder diameter	φ20mm
Electrode diameter	φ13mm
Flow of cooling water	5L/MIN
Air source pressure	0.5-0.7Mpa
Welding ability	Cold plate 2mm+2mm
Arm length	380/580/780mm
Weight	165kg
Outline size	880mm×500mm×1450mm

Product Details:

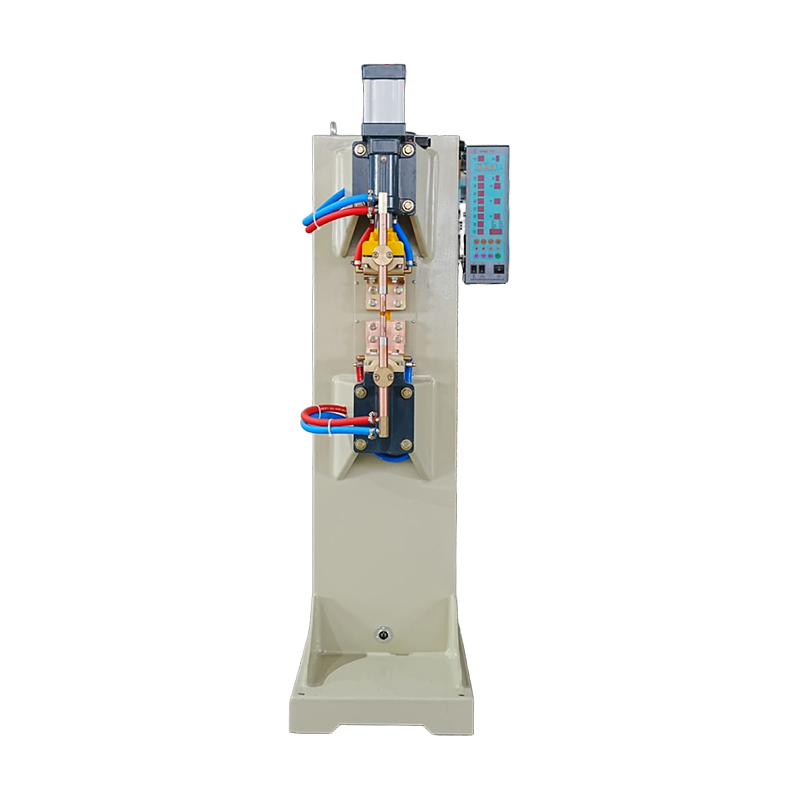

35KVA AC Spot Welding Machine

The 35KVA AC spot welding machine utilizes a proven industrial-frequency transformer combined with pneumatic and electrical control systems to deliver stable welding current and controllable heat input. It produces consistent, strong, and aesthetically pleasing welds, making it ideal for thin carbon steel and stainless-steel applications.

This AC spot welder’s simple structure and easy maintenance make it suitable for small to medium manufacturing operations. It excels in high-volume production scenarios such as appliance casings, hardware components, and sheet metal parts, reducing welding defects and spatter while enhancing efficiency.

With adjustable parameters for current and pressure, it adapts to various materials and welding requirements. The AC technology remains a cost-effective, reliable choice for resistance spot welding needs.

About Us

Yongkang Jiaxiao Welding Automation Equipment Co., Ltd.

Since its establishment 30 years ago, Yongkang Jiaxiao Welding Automation Equipment Co., Ltd. has specialized in the research, development, manufacturing, sales, and service of resistance welding machines, specialized welding machines, 35KVA AC Spot Welding Machine , and automated stamping equipment for materials such as copper, aluminum, iron, and stainless steel. The wholesale Spot Welding Machine supplier boasts a dedicated R&D team led by experts and comprised of diverse engineers. Its products have passed both the Chinese 3C and European CE certifications, and the company holds dozens of national patents. The company is a leading domestic manufacturer of resistance and automatic welding machines.
