Power Frequency Spot Welding Machine

Home / Products / Spot Welding Machines / Power Frequency Spot Welding Machine / 20KVA to 200KVA Power Frequency Spot Welding Machine

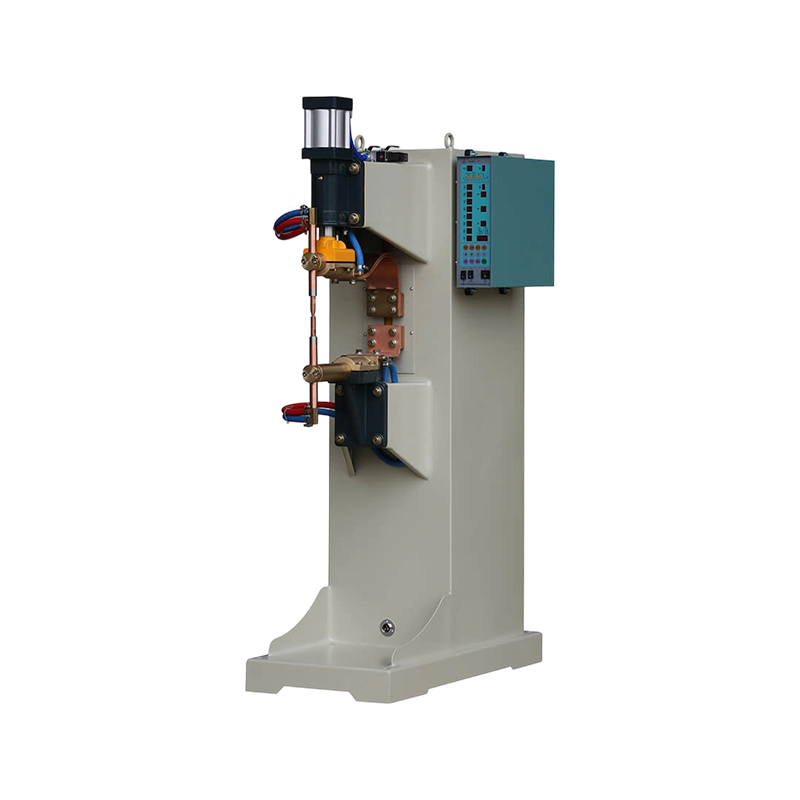

DN-35KVA power frequency spot welding machine for stable resistance welding of metal sheet parts DN-35KVA

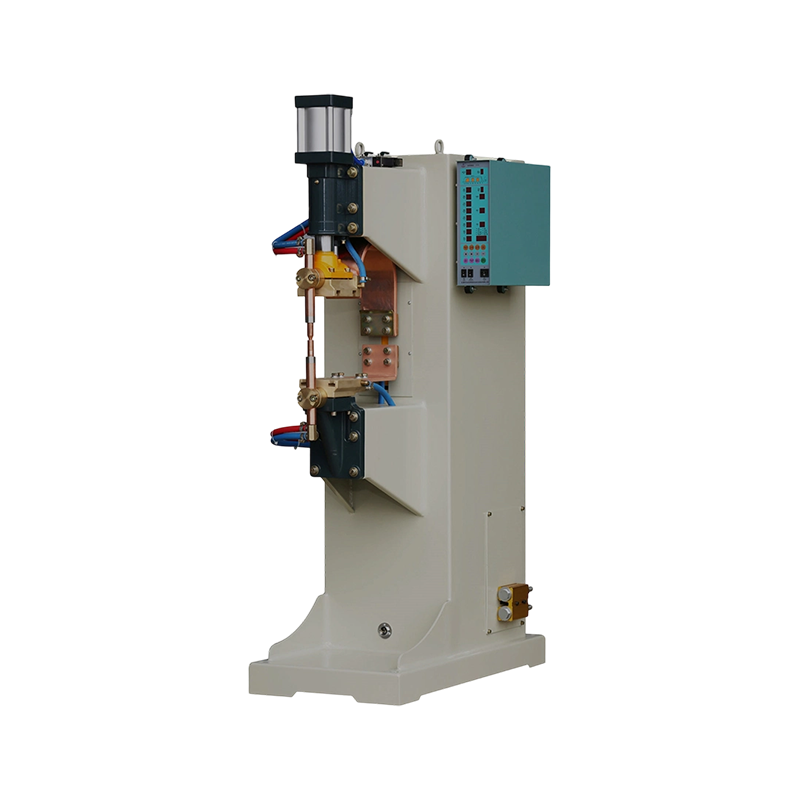

DTN-63KVA pneumatic resistance spot welding machine for medium thickness metal sheet welding DTN-63KVA

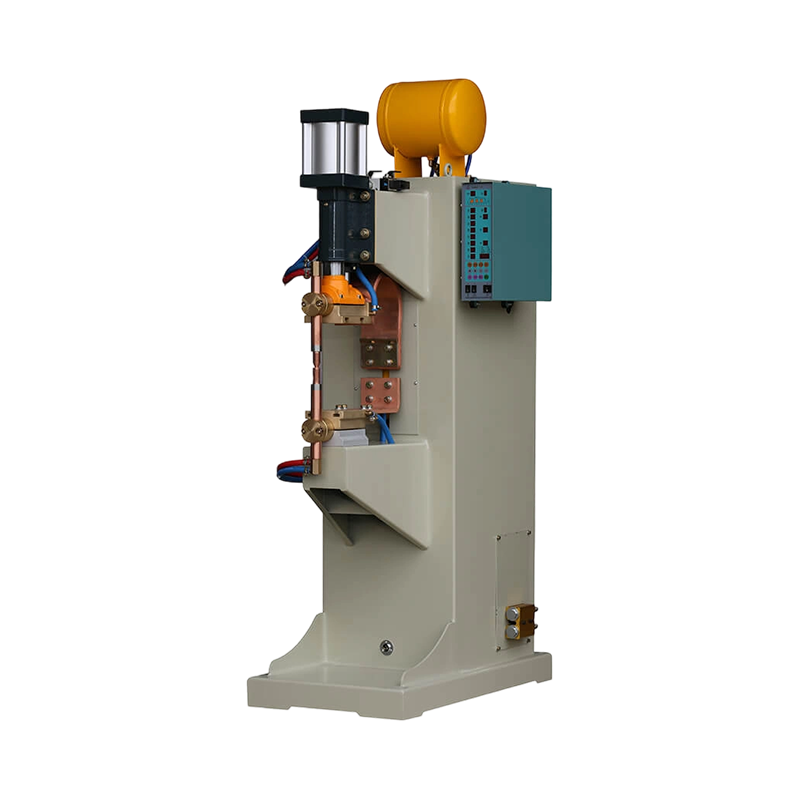

DTN-100KVA power frequency spot welder for industrial metal parts and automated production workflows DTN-100KVA

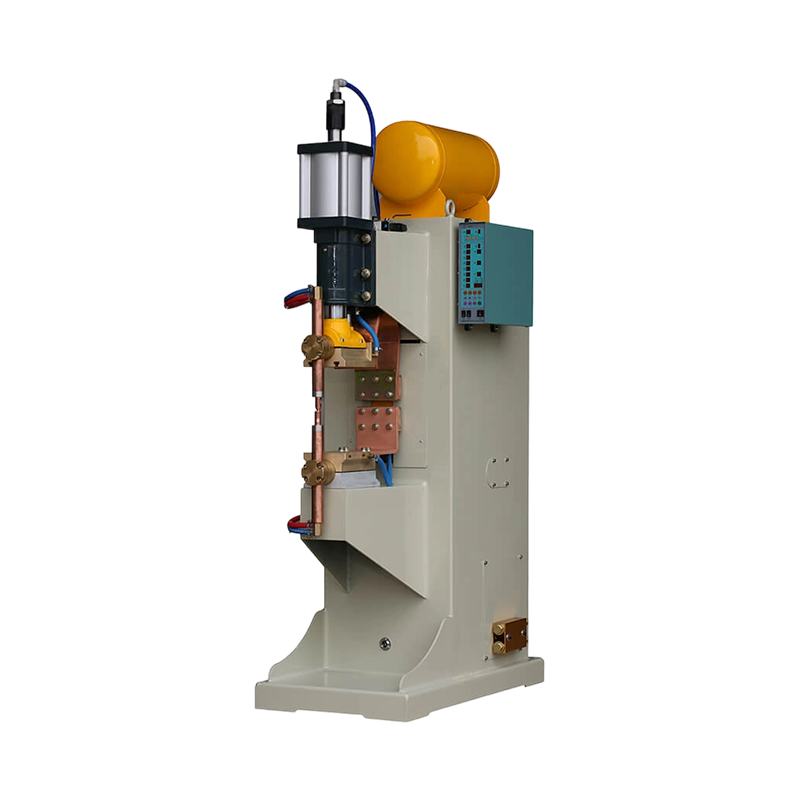

DTN-150KVA industrial spot welding machine for high strength welding of thicker sheet metal components DTN-150KVA

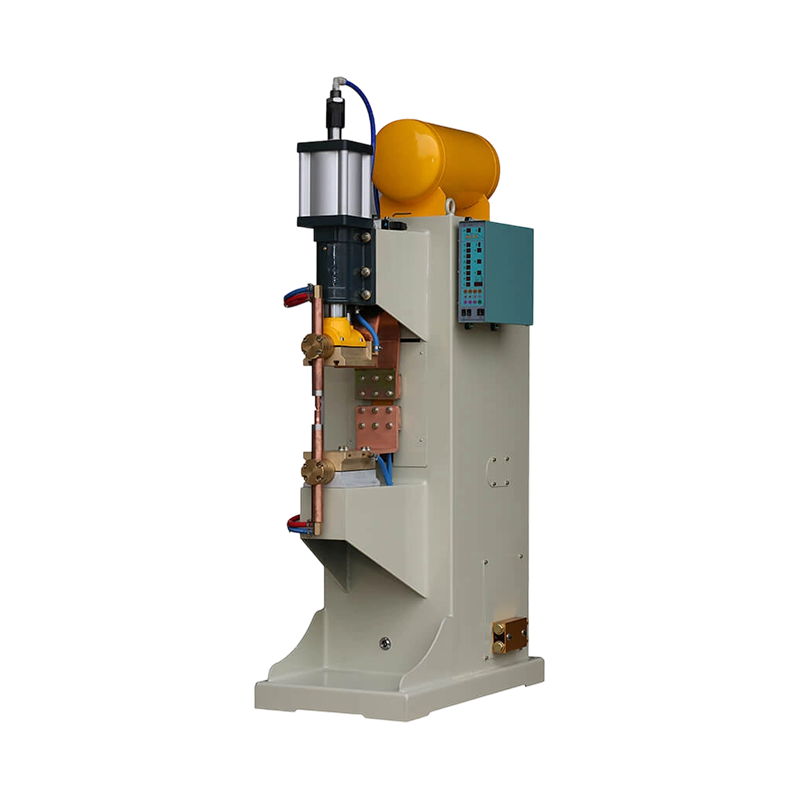

DTN-200KVA high capacity power frequency spot welding machine for heavy duty metal fabrication DTN-200KVA

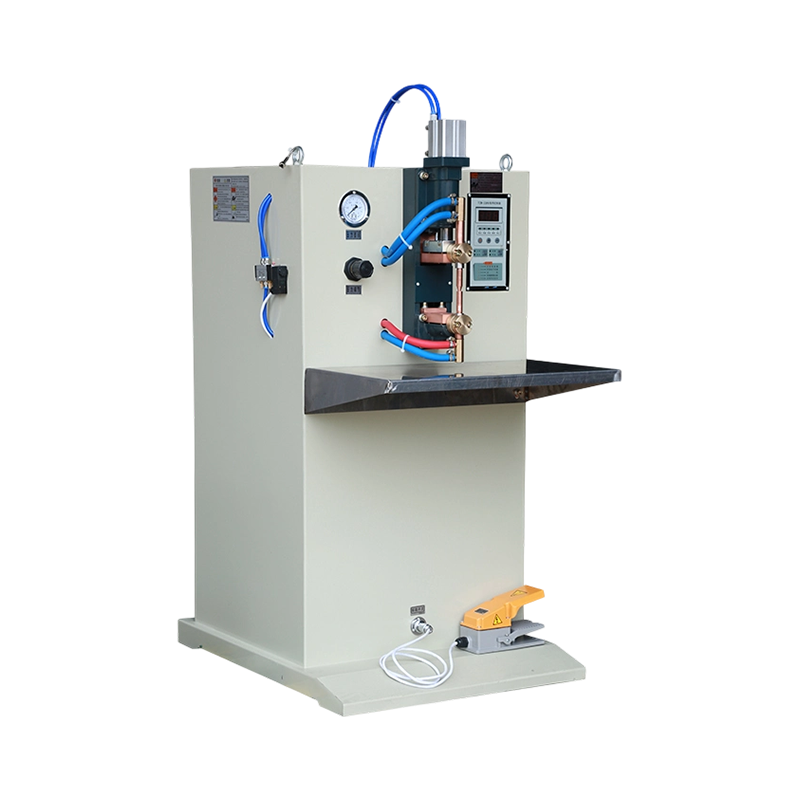

DN-20KVA compact spot welding machine with foot pedal control for small metal parts welding DN-20KVA

Pneumatic Spot Metal Mesh Row Welding Welding Machine

Product Details:
Parameters DN-35KVA
 DTN-63KVA
 DTN-100KVA
 DTN-150KVA
 DTN-200KVA
 DN-20KVA
Rated capacity 35K VA 63K VA 100K VA 150K VA 200K VA
Voltage input 380V/50Hz single phase 380V/50Hz single phase 380V/50Hz single phase 380V/50Hz single phase 380V/50Hz single phase
Inlet wire 16mm² 25mm² 35mm² 50mm² 70mm²
Secondary voltage 5.2 V 7.2 V 8.5 V 9.7 V 11.5 V
Max short-circuit current 16KA 24KA 30KA 36KA 40KA
Duty cycle 20% 20% 20% 20% 20%
Cylinder φ80 φ100 φ125 φ125 φ160
Cylinder stroke 60mm 80mm 100mm 100mm 120mm
Max pressure 2500N 3900N 6100N 6100N 10000N
Projection platform inner space 220mm 110×130mm 120×130mm 120×130mm 150×170mm
Copper bar diameter φ44mm
Projection platform inner space 220mm 250mm 250mm 290mm
Holder diameter φ20mm φ25mm φ30mm φ30mm φ38mm
Copper bar diameter φ54mm φ64mm φ64mm φ79mm
Electrode diameter φ13mm φ16mm φ20mm φ20mm φ20mm
Flow of cooling water 5L/MIN 6L/MIN 8L/MIN 12L/MIN 12L/MIN
Air source pressure 0.5-0.7Mpa 0.7Mpa 0.7Mpa 0.7Mpa 0.7Mpa
Welding ability Cold plate 2mm+2mm Cold plate 3mm+3mm Cold plate 4mm+4mm Cold plate 5mm+5mm Cold plate 6mm+6mm
Arm length 380/580/780mm 380/580/780mm 380/580/780mm 380/580/780mm 420/650mm
Weight 165kg 255kg 325kg 420kg 630kg
Outline size 880mm×500mm×1450mm 920mm×530mm×1530mm 960mm×580mm×1750mm 960mm×580mm×1750mm 1150mm×630mm×2000mm
Product Details:

Spot Welding Machine Series

Our Spot Welding Machine series offers a complete range of reliable welding solutions — from compact bench-top models to high-capacity industrial units. This series includes DN-20KVA, DN-35KVA, DTN-63KVA, DTN-100KVA, DTN-150KVA, and DTN-200KVA Spot Welding Machine models.

DN-20KVA DN-35KVA DTN-63KVA DTN-100KVA DTN-150KVA DTN-200KVA

These machines are designed using proven mains-frequency resistance spot welding technology, delivering stable welding performance and consistent weld quality across a wide range of applications. Spot welding uses a controlled electric current to join metal sheet workpieces by heat generated through resistance at the contact points.

The machines can be equipped with different electrode types, foot pedals, and pneumatic controls to fit specific production workflows.

Key Features

Wide Capacity Range Spanning 20KVA to 200KVA, the range covers everything from light-duty metal parts to higher-strength industrial components without a gap in between.
Stable Power Frequency Welding Technology Built on mature mains-frequency resistance spot welding technology, it keeps current output reliable and weld formation consistent, run after run.
Strong Machine Structure A rigid body design keeps vibration and deformation in check during welding, which is exactly what long-term stable operation depends on.
Flexible Electrode Configuration Electrode tips, arms, and fixtures can all be swapped in depending on workpiece material, size, and welding position.
Optional Pneumatic Control Pneumatic models bring controlled electrode pressure into the mix, lifting welding stability across repeated production cycles.
Easy Operation and Adjustment Welding time, pressure, and current settings adjust to fit material thickness and whatever the welding job calls for.
Suitable for Multiple Metal Materials Commonly put to work on carbon steel, stainless steel, galvanized sheet, iron parts, and other conductive metal components.
Factory Manufacturing Support Backed by an experienced welding automation equipment manufacturer, with R&D capability, quality control, and technical service all built into the offering.

Application Areas

The Power Frequency Spot Welding Machine series finds its way into metal product manufacturing, hardware processing, sheet metal fabrication, automotive component production, household appliance parts, kitchenware manufacturing, wire product welding, frame welding, cabinet parts, metal brackets, stainless steel products, and general industrial metal joining processes across the board.

  • Metal product manufacturing
  • Hardware processing
  • Sheet metal fabrication
  • Automotive component production
  • Household appliance parts
  • Kitchenware manufacturing
  • Wire product welding
  • Frame welding
  • Cabinet parts
  • Metal brackets
  • Stainless steel products
  • General industrial metal joining
It fits particularly well where stable welding spots, strong joint strength, clean welding performance, and repeatable production quality are non-negotiable.
Looking for a spot welding solution that actually suits your metal parts? Share your workpiece material, thickness, welding position, and production requirements with our technical team, and we'll recommend a DN or DTN power frequency spot welding machine configuration built around your application.
