Flash Butt Welding Machine

The Flash Butt Welding Machine is a high-performance resistance welding system that joins metal ends by initiating controlled electrical flashes as the workpieces approach contact. These flashes heat the surfaces to a plasticized state, and the application of forging pressure completes the weld with exceptional strength and consistency. This flashing action also expels air and oxides, resulting in cleaner, denser joints with superior fatigue resistance. Advanced models incorporate programmable controllers to finely adjust preheat, flash and upset forging stages for optimal results across varying part geometries and materials. Flash butt welders are widely used for pipes, profiles, chain rings, wheel rims, tools and other metal assemblies that demand high-quality, robust butt welds in automated production environments.

Product Features

Controlled Flash Welding Process

Controlled electrical flashing heats the workpiece ends before the final forging step kicks in. Along the way, this process clears oxides and impurities out of the joint area.

  • Strong and dense welded joints
  • Clean bonding surface
  • Reduced oxide inclusion
  • High fatigue resistance
  • Stable welding quality
  • Suitable for demanding metal parts

High Strength Upset Forging

Once flashing wraps up, forging pressure takes over to finish the weld. Heated metal ends get compressed together, forming a solid connection.

  • Reliable joint strength
  • Good structural integrity
  • Consistent welding section
  • Suitable for load-bearing components
  • Improved long-term durability

Pneumatic Pressing Structure

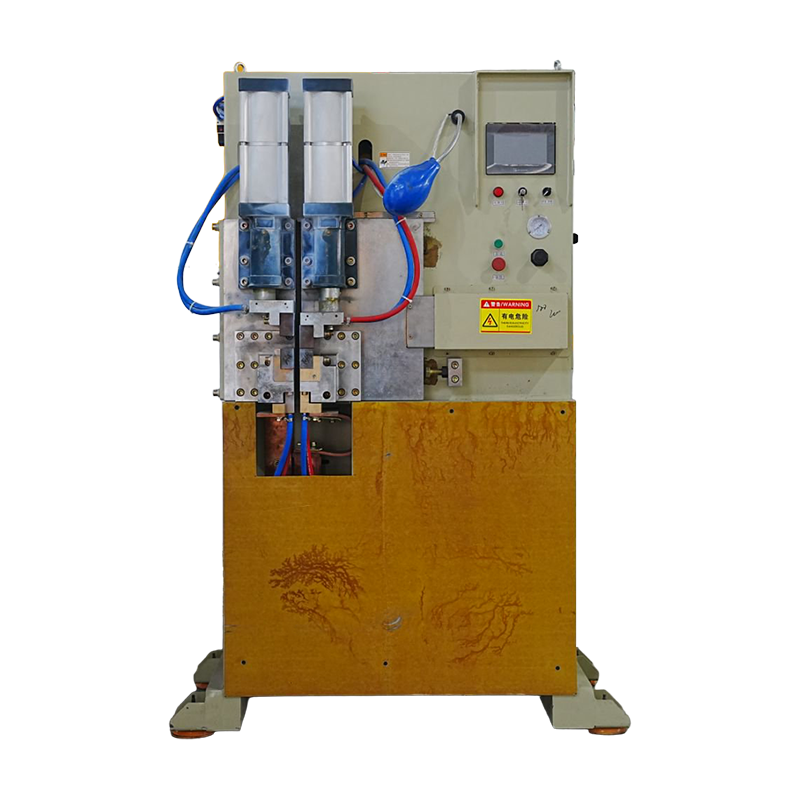

A visible dual-cylinder structure keeps pressing force stable and motion control smooth throughout welding.

  • Stable clamping and upsetting action
  • Accurate pressure application
  • Reduced manual operation effort
  • Better repeatability during continuous production
  • Suitable for different workpiece shapes with proper fixtures

Adjustable Welding Parameters

Operators dial in welding settings through the control system, matching material type, section size, and product requirements.

  • Preheating time
  • Flashing time
  • Welding current
  • Upsetting pressure
  • Holding time
  • Cooling time
  • Clamping force
  • Welding cycle timing

That range of adjustment is what lets the machine keep pace with different production processes and metal specifications.

Rigid Vertical Cabinet Design

A compact vertical structure carries the machine, built around a strong cabinet base with an integrated control area.

  • Stable machine body
  • Space-saving layout
  • Convenient operation panel
  • Protected internal electrical components
  • Easy maintenance access
  • Suitable for workshop production environments

Application Industries

Industry Application Examples
Pipe Processing Steel pipe joining, tube sections, pipe frames
Chain Manufacturing Chain rings, chain links, industrial chain components
Tool Production Tool handles, cutting tools, forged tool blanks
Automotive Parts Wheel rims, brackets, rods, structural fittings
Hardware Manufacturing Rings, hooks, frames, connectors, metal fittings
Metal Profile Processing Steel profiles, formed sections, frame components
Machinery Manufacturing Shafts, rods, connectors, mechanical assemblies
Construction Components Steel supports, structural connectors, reinforcement parts
Agricultural Equipment Tool parts, frame parts, metal rods
General Metal Fabrication Custom welded components and industrial metal assemblies

Working Principle

  1. The workpieces are placed into the clamping fixtures.
  2. The clamping system holds both metal ends in accurate alignment.
  3. Electrical current is applied as the two ends approach each other.
  4. Controlled flashing occurs at the contact surface, generating intense localized heat.
  5. The flashing action removes oxides and surface impurities from the joint area.
  6. Once the ends reach the proper plastic state, upsetting pressure is applied.
  7. The heated ends are forged together to form a dense, strong weld.
  8. The joint is held briefly under pressure to stabilize the welding result.
  9. The finished welded part is removed for the next production cycle.

Customization Options

The machine can be configured according to different workpiece dimensions, materials, and production requirements.

  • Welding power configuration
  • Fixture design for round, flat, tubular, or profile parts
  • Electrode and conductive block design
  • Pneumatic cylinder stroke
  • Clamping force range
  • Upsetting pressure setting
  • Control system configuration
  • Preheating function
  • Flashing stage adjustment
  • Cooling time setting
  • Safety protection structure
  • Semi-automatic operation layout
  • Production line integration support
  • Machine color and external structure

Technical Support Information

Getting machine selection and welding process evaluation right comes down to a few key details:

  • Workpiece material
  • Workpiece shape
  • Diameter, thickness, or cross-section size
  • Welding position
  • Required joint strength
  • Product drawing
  • Sample photo
  • Production capacity requirement
  • Workshop power supply
  • Automation level
  • Fixture requirement
  • Surface condition of the material
Once these details are in hand, the technical team can work through welding feasibility, machine power, fixture design, and recommended process settings for your application.

Frequently Asked Questions

What is a flash butt welding machine used for?
A flash butt welding machine is used for joining metal ends through controlled flashing, heating, and upsetting pressure. It is commonly used for pipes, rods, profiles, rings, chains, wheel rims, tools, and structural metal parts.
What materials can be welded?
The machine can weld carbon steel, stainless steel, alloy steel, iron, low carbon steel, medium carbon steel, and other conductive metal materials. The actual welding range depends on material size, shape, and machine configuration.
Does flash butt welding require filler material?
No. The machine joins metal ends directly through resistance heating and forging pressure, so filler wire or welding rod is not normally required.
Why is flash butt welding strong?
The process heats the metal ends to a plastic state and then forges them together under pressure. The flashing stage also helps remove oxides and impurities, producing a dense and strong joint.
Can the machine weld different shapes of parts?
Yes. With suitable fixtures, the machine can weld round bars, flat bars, pipes, rings, profiles, and special-shaped components.
Is the welding process suitable for continuous production?
Yes. The pneumatic structure, adjustable control system, and rigid machine body make it suitable for repeated industrial welding cycles.
Can fixtures be customized?
Yes. Fixtures can be designed according to the workpiece shape, size, and welding position to improve alignment and welding stability.
What information is needed before selecting the machine?
Material, workpiece size, product drawing, sample photo, welding strength requirement, production capacity, and workshop power supply are helpful for selecting the proper machine configuration.
The Flash Butt Welding Machine handles high-strength end-to-end welding for pipes, rods, profiles, chain rings, wheel rims, tools, and metal components. Controlled flashing paired with upsetting pressure creates clean, dense, durable welded joints — all without filler material. A rigid vertical structure, pneumatic pressing system, adjustable welding parameters, and a dependable control panel come together to make the machine well suited for continuous industrial welding applications. Built by Yongkang Jiaxiao Welding Automation Equipment Co., Ltd., it brings practical welding technology together with stable factory production capability.
