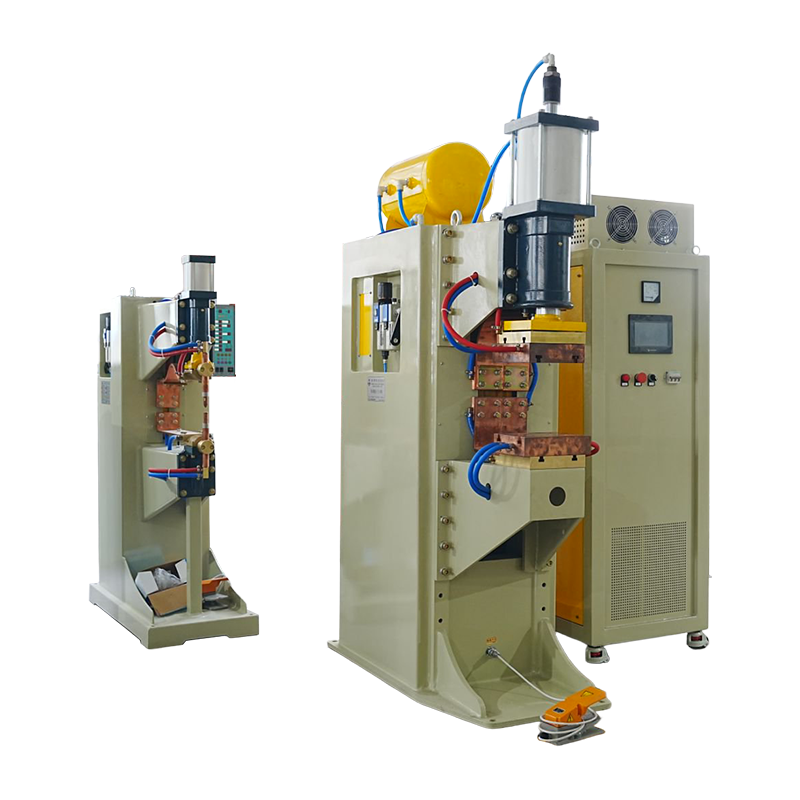

10000J capacitor discharge spot welding machine for precision metal welding and industrial automation

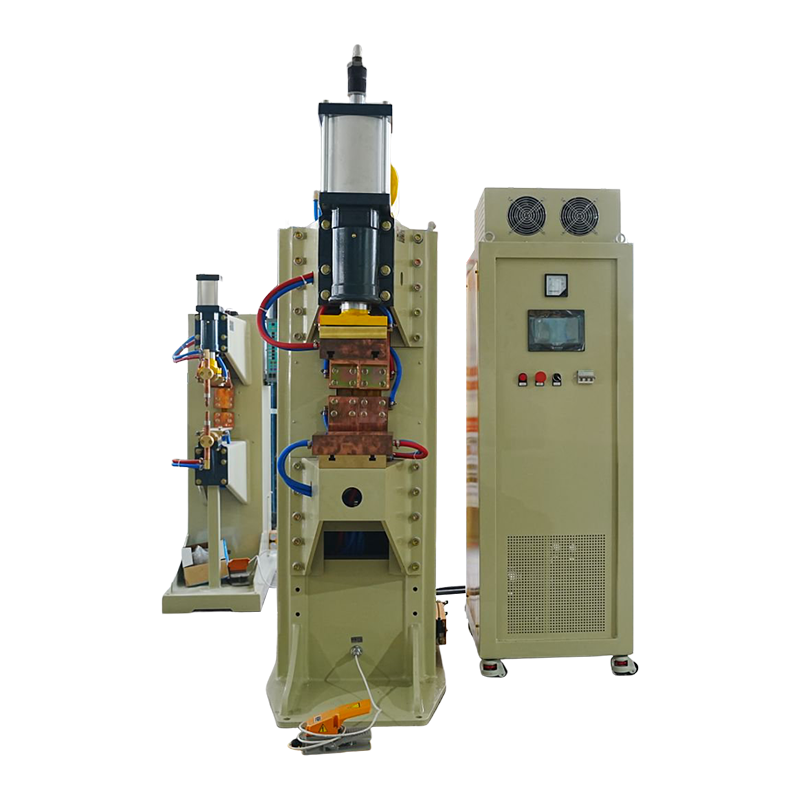

industrial capacitor spot welding machine with pneumatic welding head for OEM and ODM metal fabrication
10000J energy storage capacitor discharge spot welder for stainless steel steel and conductive metal welding

Pneumatic Spot Metal Mesh Row Welding Welding Machine

Product Details:
Product Details:

10000J Capacitor Discharge Spot Welding Machine

Sheet metal that warps after welding usually isn't a material problem — it's a heat problem. Conventional AC resistance welders keep current flowing for several cycles, and that extra time gives heat a chance to spread beyond the weld point, softening or discoloring the surrounding metal.

Our 10000J capacitor discharge (CD) welding machine takes a different approach: it charges a capacitor bank and releases the entire stored energy in a single pulse lasting just a few milliseconds. The nugget forms before heat has anywhere to travel, so the base material around it stays cool, flat, and unmarked.

How the Energy Discharge Actually Helps

Millisecond-Range Discharge Concentrates current at the weld interface instead of dissipating it through the part.
Narrow Heat-Affected Zone Keeps thin sheets and pre-finished surfaces from warping or discoloring.
Lower Average Power Draw Energy is stored gradually and released instantly, helping smooth out demand spikes on the factory's electrical supply.
Voltage-Fluctuation Tolerance Because welding energy comes from the capacitor bank rather than directly from mains power, weld consistency doesn't drift when incoming voltage does.
This combination matters most on projection welding nuts, thin-gauge brackets, and any part where a visible burn mark or bulge would fail final inspection.

Materials & Typical Use Cases

Material Common Application Why CD Welding Fits
Carbon steel / galvanized steel Appliance chassis, brackets Minimal spatter on coated surfaces
Stainless steel Hardware fittings, kitchen equipment No discoloration ring around the weld
Copper & brass Electrical terminals, busbars Handles high-conductivity metals without excessive heat loss
Mixed-metal projection welds Fasteners, studs, nuts Precise nugget control even with dissimilar melting points

Where It's Used on the Production Floor

  • Home appliance sheet-metal assembly
  • Stainless steel hardware and fittings
  • Electrical terminals and connector housings
  • Automotive brackets and structural components
  • Projection welding of nuts, studs, and fasteners
  • Industrial frames and metal enclosures
  • Custom OEM/ODM welded parts
  • Integration into automated resistance-welding lines, robot-fed or fixture-based

FAQ

What makes capacitor discharge welding different from standard resistance spot welding?

Standard AC spot welding runs current for several power-line cycles, roughly 100–300 milliseconds. CD welding discharges stored capacitor energy in a fraction of that time — often under 10 milliseconds — which is why the heat-affected zone is so much smaller.

Can this machine weld dissimilar metals, like copper to steel?

Yes. Because the discharge energy and pulse width are adjustable, the machine can be tuned for projection welds between metals with different conductivity and melting points, which is common in electrical terminal manufacturing.

Does incoming power quality affect weld consistency?

Not significantly. Since the capacitor bank stores energy before discharge, short-term voltage fluctuations in the plant's power supply have far less impact than they would on a direct-drive AC welder.

Is it suitable for automated production lines?

Yes — the machine is designed for integration with robotic arms or fixture-based automated feeding systems, with repeatable discharge control suited to high-volume, unattended operation.
