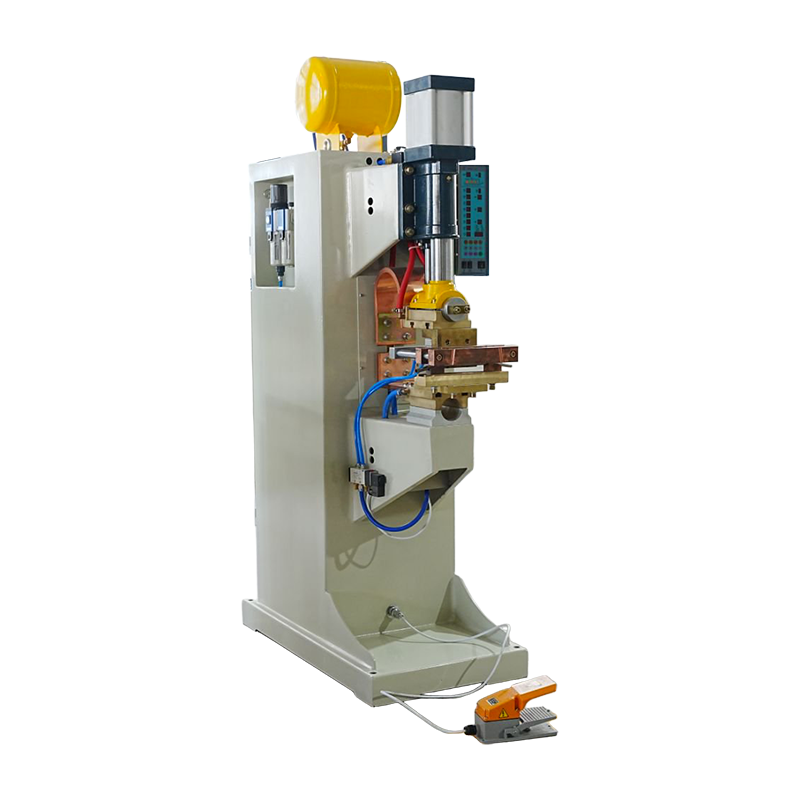

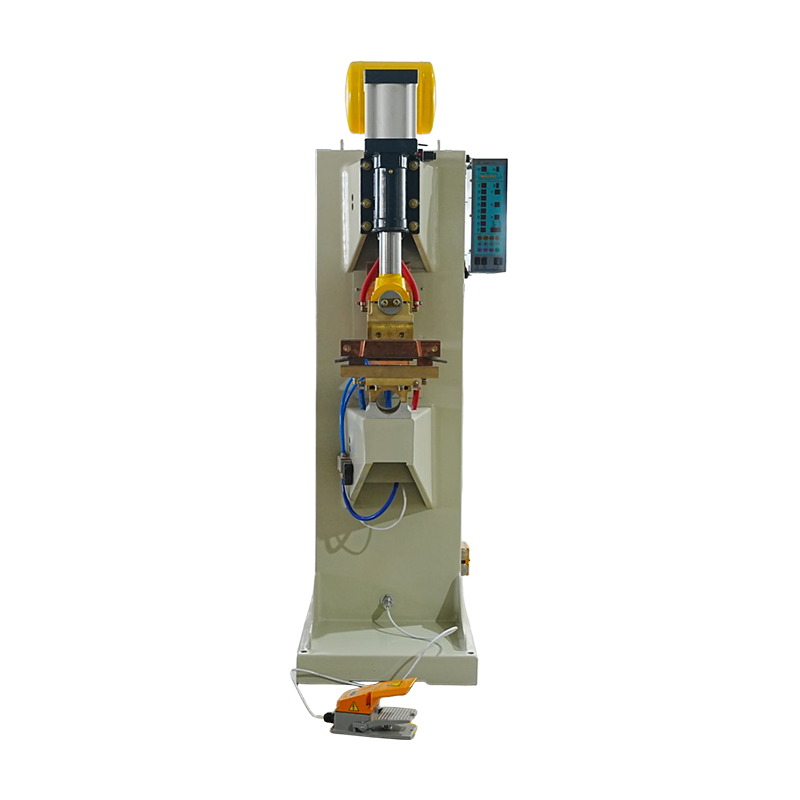

Folder bracket T-Type spot welding machine with pneumatic welding head and positioning fixture
automated T-Type bracket spot welding machine with PLC control system and servo positioning
industrial folder bracket welding equipment with special fixture for accurate T-shaped bracket welding

Pneumatic Spot Metal Mesh Row Welding Welding Machine

Product Details:
Product Details:

Folder Bracket T-Type Welding Machine

The Folder Bracket T-Type Welding Machine is a highly efficient automated welding solution specifically engineered for welding metal components such as folder brackets. Featuring an advanced PLC control system and servo drive mechanism, it delivers precise positioning and consistent weld quality, significantly increasing production efficiency.

This welding machine is equipped with a high-performance inverter, cooling system, and multiple safety protection features to ensure long-term reliable operation. The user-friendly interface allows intuitive operation with easy parameter presets and fast adjustments, making it suitable for both small batch and high volume production.

With specially designed fixtures and a positioning system tailored to T-shaped bracket structures, it effectively minimizes weld deformation and rejects.

Product Features

  • Specialized design for folder bracket and T-type bracket welding
  • PLC control system for stable process management
  • Dedicated fixture for accurate bracket positioning
  • Pneumatic welding head for controlled electrode pressure
  • Copper electrode tooling for efficient current transmission
  • Reinforced vertical frame for stable welding operation
  • Foot pedal control for convenient manual loading
  • Adjustable welding time, pressure, and process parameters
  • Suitable for carbon steel, stainless steel, galvanized steel, and formed metal parts
  • Helps reduce welding deformation and positioning error
  • Supports fixture customization and semi-automatic station integration
  • Suitable for repeated production of bracket-type metal assemblies

Why This Machine Is Built for Folder Bracket Welding

Folder brackets and T-type metal components usually call for precise alignment between two or more parts before the weld ever starts. Once the fixture loses stability or electrode contact turns uneven, the finished product tends to show it — weld offset, weak joints, visible deformation, or dimensions that drift from part to part.

This machine works through these issues by way of:

Dedicated fixture positioning that keeps bracket alignment locked in
Stable pneumatic pressure for consistent contact throughout the cycle
Copper electrode tooling built for efficient current transfer
PLC-controlled welding rhythm that keeps cycles repeatable
Manual positioning error kept to a minimum
Lower deformation risk on small bracket assemblies
Stronger welding consistency across repeated parts
Flexible tooling design that adapts to different bracket models
For production runs involving folder brackets, support parts, and T-shaped hardware components, a dedicated welding machine generally holds up better than a general-purpose spot welder would.
The Folder Bracket T-Type Spot Welding Machine is a customized resistance spot welding system built specifically for folder brackets, T-shaped metal brackets, support brackets, hardware fittings, appliance parts, cabinet accessories, and small structural metal assemblies. Its PLC control, pneumatic welding pressure, custom positioning fixture, copper electrode tooling, reinforced frame, cooling support, and foot pedal operation come together to deliver accurate positioning, stable weld strength, reduced deformation, and welding performance that stays repeatable across bracket production runs.
