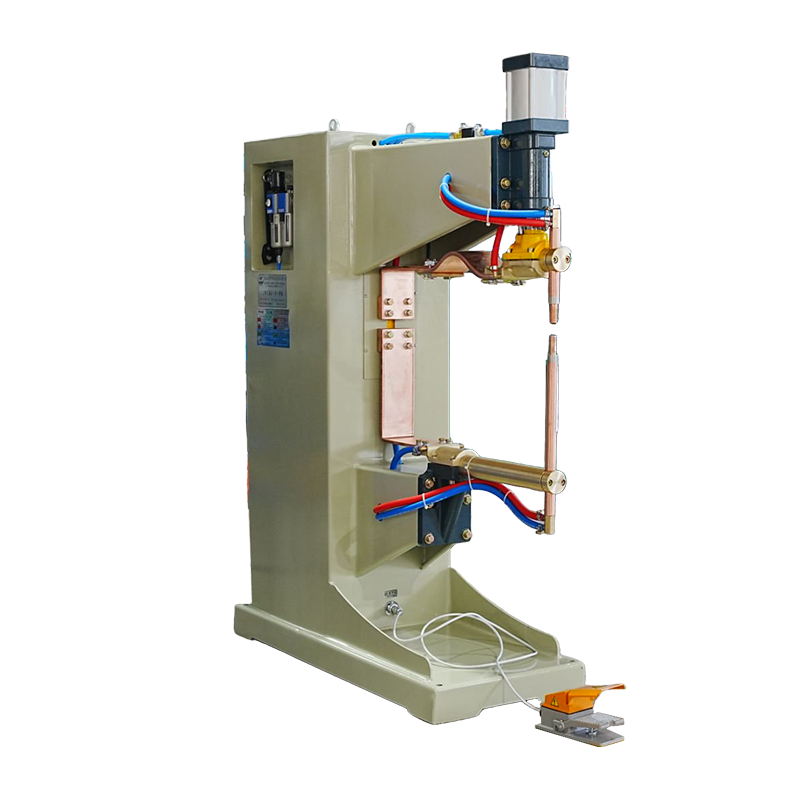

63KVA AC spot welding machine with increased internal clearance and taller frame for large workpieces

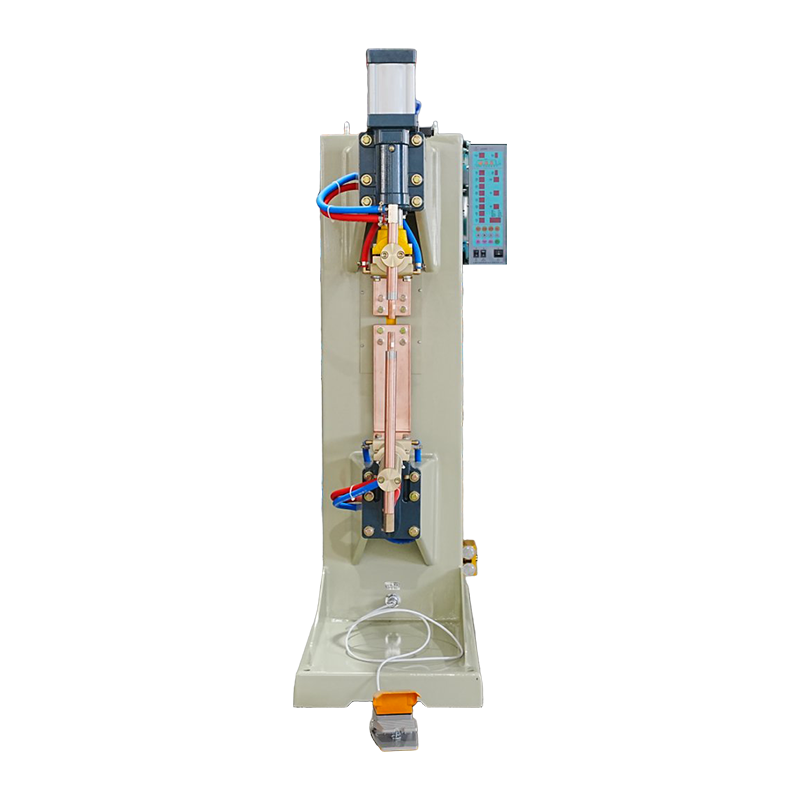

63KVA AC spot welder with expanded workspace for welding metal frames cabinets and structural components
power frequency AC spot welding machine with large internal clearance and flexible fixture interface

Pneumatic Spot Metal Mesh Row Welding Welding Machine

Product Details:
Product Details:

63KVA AC Spot Welding Machine with Increased Internal Clearance

The 63KVA AC spot welding machine with increased internal clearance features a taller frame and expanded workspace to accommodate larger and more complex workpieces. Its high-power output and stable control system ensure consistent, high-strength welds, making it ideal for large metal frames, electrical enclosures, cabinets, and structural components.

Flexible fixture interfaces allow quick tooling changes for various product sizes. The elevated design enhances operator access and safety, and it is suitable for both automated and semi-automated production environments, improving manufacturing efficiency and quality control.

Machine Structure: What Each Part Actually Solves

Increased Internal Clearance The expanded internal clearance opens up more room between the machine frame and the welding area, so large panels, frames, cabinets, and structural parts can be positioned for spot welding without a struggle.
Taller Vertical Frame A taller frame design means better workpiece access and more room to operate — a real advantage for deep components, tall assemblies, and any part that needs extra clearance during loading and welding.
63KVA AC Transformer This industrial-frequency AC transformer keeps welding current steady across sheet metal and structural component work. At 63KVA output, it holds up reliably for medium-duty metal joining applications.
Pneumatic Welding Head The pneumatic welding head keeps electrode pressure under control throughout the welding cycle. That steady pressure translates into more consistent weld nuggets and fewer defects from uneven contact.
Copper Electrode Arms Copper conductive arms carry current efficiently to the weld point, and their structure can be adjusted or custom-built to match workpiece depth, electrode access, and welding position.
Side-Mounted Control Panel From the control panel, operators can dial in welding current, welding time, and other process settings — making it easy to match the machine to different materials, thicknesses, and welding needs.
Foot Pedal Operation With the foot pedal switch, operators keep both hands free to position larger workpieces before the welding cycle kicks in, which makes handling heavier parts both more convenient and safer.

Why Increased Internal Clearance Matters

Welding difficulty in sheet metal and enclosure work doesn't always trace back to material thickness alone — more often than not, it's the size and shape of the workpiece that's the real culprit. Standard spot welders can fall short here, running out of throat depth, vertical clearance, or operating space once the assembly gets large.

The increased internal clearance addresses these problems directly:

Opens up more room for large workpieces
Makes loading and unloading easier
Gives better access to deep welding positions
Cuts down interference between the workpiece and machine frame
Allows more flexible fixture installation
Improves how operators handle the parts
Adapts better across different product sizes
Fits naturally into semi-automatic fixture-based welding
For cabinets, enclosures, frames, and large sheet metal assemblies, this kind of structure goes a long way toward smoother production and steadier welding performance.

Custom Fixture & Process Support

Jiaxiao customizes the machine around actual workpiece size, welding point position, material thickness, and whatever the production line actually needs.

Support available includes:

  • Increased clearance frame customization
  • Extended copper electrode arms
  • Custom electrode shapes
  • Workpiece positioning fixtures
  • Pneumatic clamping devices
  • Large panel support tooling
  • Adjustable worktables
  • Semi-automatic welding station design
  • PLC control integration
  • Safety guarding configuration
  • Welding parameter guidance
  • Sample welding process testing
  • Non-standard resistance welding equipment development
With this support in place, the equipment ends up fitting real production conditions far more closely — particularly when the work involves large, deep, or irregular metal assemblies.

Product Features

  • 63KVA AC resistance welding output
  • Increased internal clearance for larger workpieces
  • Taller frame design for improved operating space
  • Reinforced structure for stable welding pressure
  • Pneumatic welding head for controlled electrode force
  • Copper electrode arms for efficient current transmission
  • Side-mounted control panel for easy parameter adjustment
  • Foot pedal operation for convenient manual loading
  • Flexible fixture interface for different product sizes
  • Suitable for cabinets, enclosures, frames, and structural parts
  • Supports semi-automatic and customized welding station integration
  • Helps improve workpiece access, welding consistency, and production efficiency
The 63KVA AC Spot Welding Machine with Increased Internal Clearance is a high-clearance AC resistance spot welder built to handle large metal frames, electrical enclosures, cabinets, appliance housings, structural sheet metal parts, formed panels, and industrial metal assemblies. Behind its taller frame and roomier internal workspace sits a 63KVA AC transformer, pneumatic welding head, copper electrode arms, reinforced body, side control panel, and foot pedal operation — a combination that keeps welding current stable, pressure under control, workpiece access straightforward, and weld quality dependable throughout large-component resistance welding work.
