Capacitor Discharge Spot Welding Machine

1000J to 30000J Capacitor Discharge Spot Welding Machine

The 1000J to 30000J Capacitor Discharge Spot Welding Machine series covers precision spot and projection welding across a wide range of conductive metal components. Spanning multiple energy levels — from compact machines suited to fine precision work up to heavy-duty industrial units — the series gives manufacturers a flexible way to match equipment to workpiece size, material thickness, required weld strength, and production volume, rather than forcing every job onto a single fixed-energy machine.

At the core of each unit is high-efficiency capacitor energy storage: electrical energy builds up in the capacitor bank, then discharges instantly as a concentrated high-current pulse. Because the cycle is so brief, the resulting weld forms firm, clean, and uniform while heat input, surface discoloration, and part deformation all stay well contained. That combination is what makes the series a practical fit for applications where weld strength, visual finish, dimensional accuracy, and repeatable quality all carry weight in the final part.

Structurally, each machine pairs a rigid vertical frame with a precision welding head, a high-conductivity copper electrode system, and an advanced control unit. Stable pressure delivery and efficient current transmission together keep welding performance consistent through long, continuous production runs. On the control side, welding energy, discharge time, pressure, and other process parameters can all be tuned to match material type, part thickness, weld position, and target joint strength.

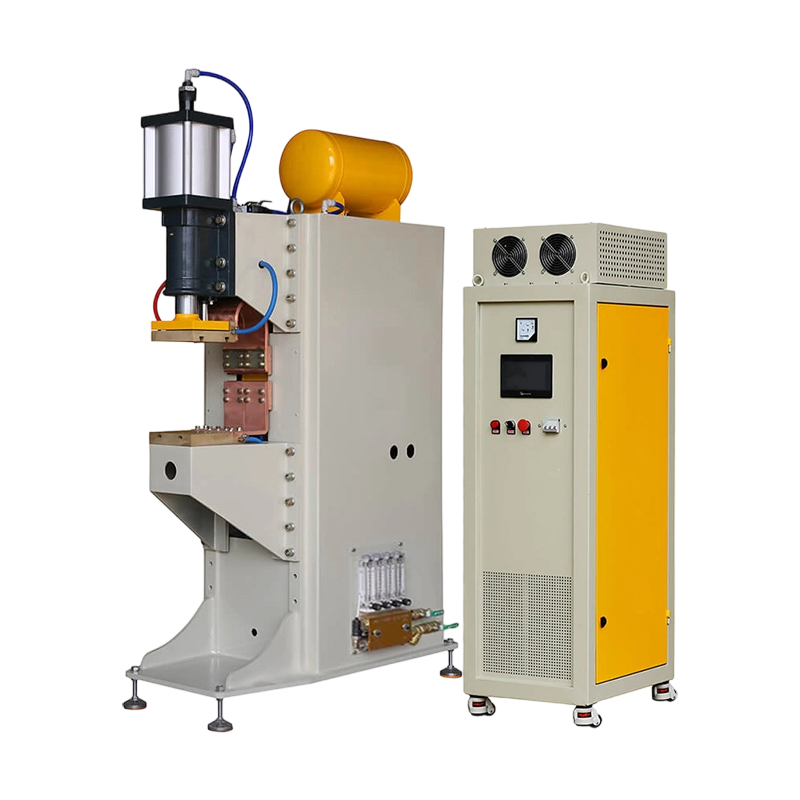

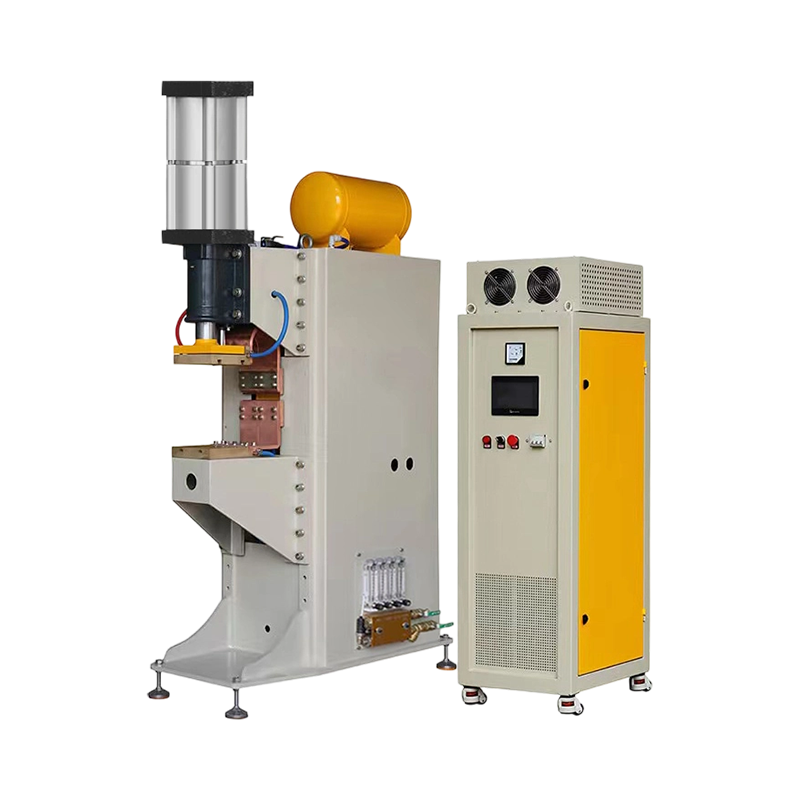

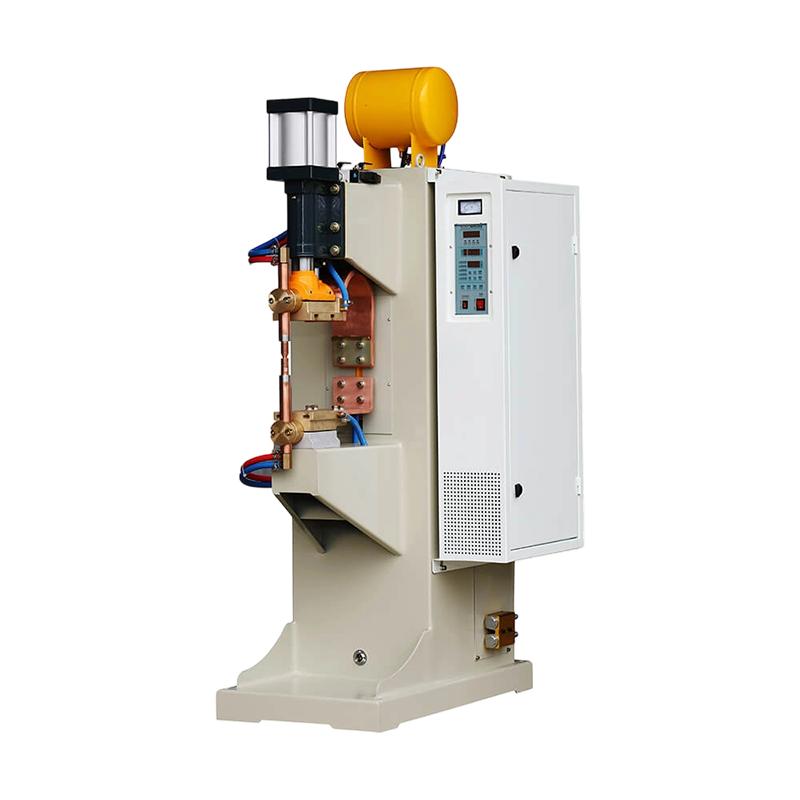

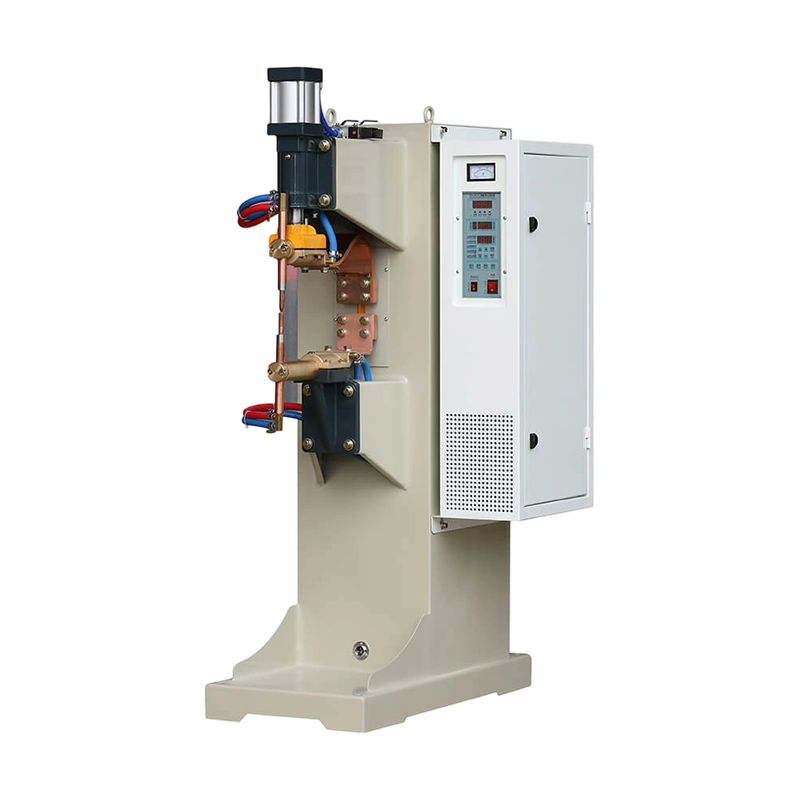

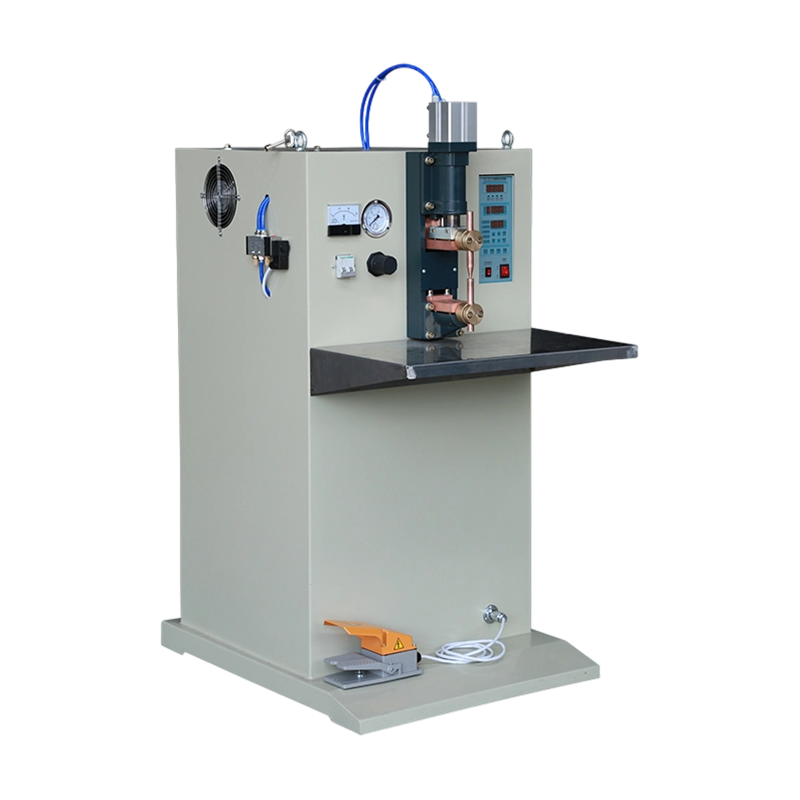

Model options across the series include DN-1000J, DR-2000J, DTR-3000J, DTR-5000J, DTR-6000J, DTR-10000J, TR-20000J, and TR-30000J. Lower-energy models are built for small and medium precision parts, while the higher-energy end of the range is designed for larger workpieces, thicker materials, and welds that need to carry more structural load. Having this many energy steps available makes it far easier to line up the welding process with the actual geometry and requirements of the product, instead of compromising on either end.

Materials compatible with the series span carbon steel, stainless steel, galvanized steel, iron, copper alloys, aluminum alloys, brass, plated metal sheets, stamped parts, and other formed metal components. In practice, that range shows up across automotive components, home appliance parts, electronic assemblies, electrical terminals, hardware fittings, metal brackets, busbar components, sheet metal structures, and precision metal processing more broadly.

Yongkang Jiaxiao Welding Automation Equipment Co., Ltd. brings 30 years of experience to the research, development, manufacturing, sales, and service of resistance welding machines, special welding machines, automatic welding machines, and automated stamping equipment. That work is backed by a dedicated technical team, ERP-managed production, certified quality control, and inspection carried out at every stage — supporting welding equipment built for copper, aluminum, iron, stainless steel, and a range of other metal materials.

Beyond the base machine, the series can be configured with dedicated welding fixtures, custom electrode tooling, automatic feeding systems, rotary positioning units, multi-station welding workstations, and fully integrated welding automation systems. Both machine structure and welding process configuration can be developed directly from a customer's product drawings, material properties, welding point layout, production rhythm, and process standards.

Fast discharge response, stable welding output, minimal heat influence, straightforward operation, and energy-efficient performance define the 1000J to 30000J Capacitor Discharge Spot Welding Machine series as a whole — giving manufacturers dependable welding results whether the job calls for delicate precision components or high-strength metal assemblies.
